New HYD-MECH H-18A | Horizontal Band Saws
ConditionNew
New

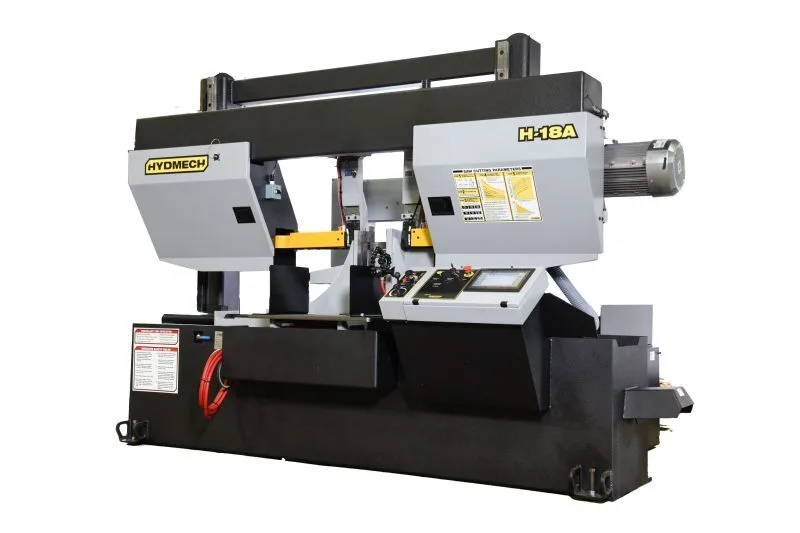

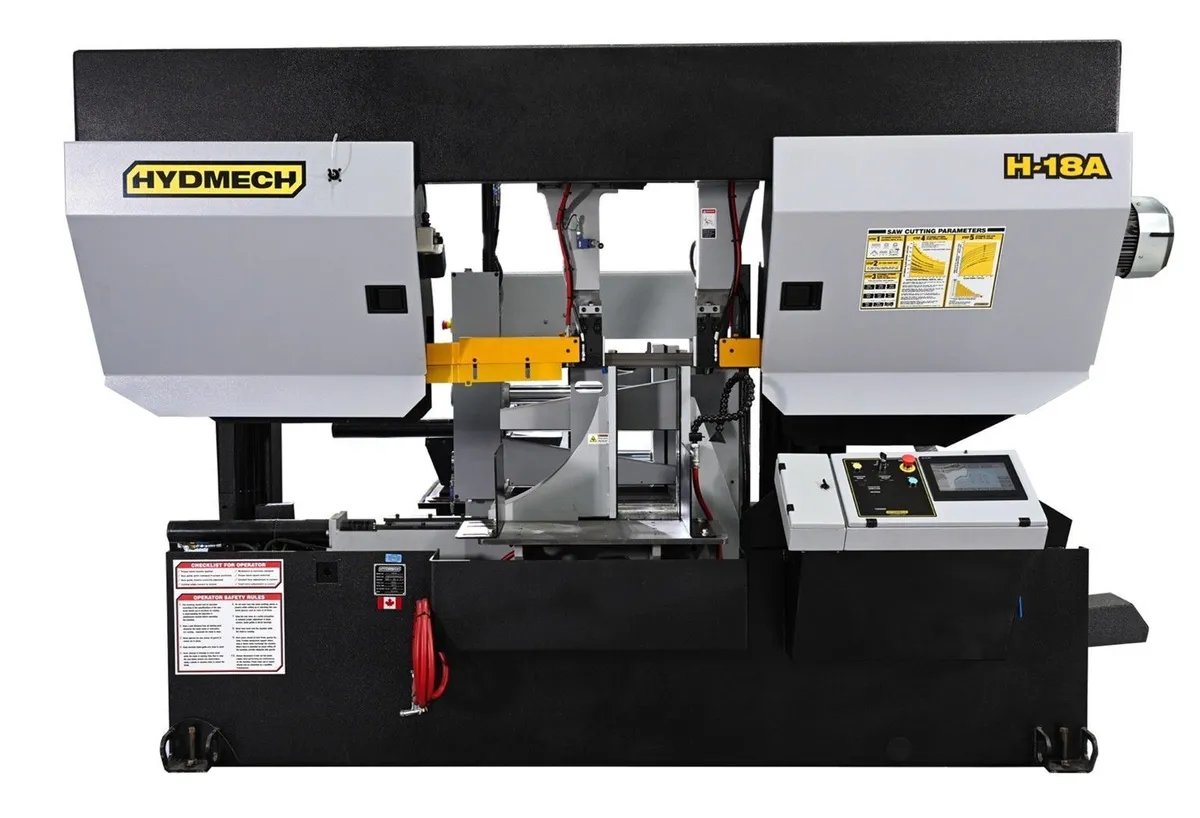

The HYDMECH H-18A is a high-performance, automatic dual-post horizontal band saw designed for speed, accuracy, and durability in demanding production environments. Its solid dual-column design ensures precise, straight cuts, while the 10 HP true direct-drive motor delivers exceptional power and torque without the maintenance of belts or pulleys.
Equipped with a 7-inch Mitsubishi FX5U PLC touchscreen with material library, the H-18A offers intuitive operation, on-screen diagnostics, and the ability to store up to 999 jobs with a 10-job queue. Hydraulic automation throughout the vises, guide arms, and head movement ensures consistency, while and hydraulic overhead bundling configurations provide versatility for a wide range of cutting applications.
Performance Highlights
• Dual-post design ensures rigidity and square accuracy on every cut
• Servo-controlled shuttle reduces cycle time and improves repeatability
• Smart PLC controls simplify operation and reduce training time
• Heavy-duty construction and premium components extend machine life
• Ideal for steel service centers, fabrication shops, and high-volume production cutting
Standard Features
AutoSet Control with Material Library
Dual-Post Frame Construction
Automatic Multi-Indexing Shuttle
Hydraulic & Feed Systems
Laser Light
Direct-Drive Blade System
Operator Interface & Safety
Automatic chip-removal auger keeps the work area clean.
Robust steel base integrates coolant and hydraulic systems.
Easy-access panels simplify maintenance.
Replaceable wear plates extend machine life.
Replaceable blade brush cleans the blade and prevents chip buildup.
The HYDMECH H-18A is a high-performance, automatic dual-post horizontal band saw designed for speed, accuracy, and durability in demanding production environments. Its solid dual-column design ensures precise, straight cuts, while the 10 HP true direct-drive motor delivers exceptional power and torque without the maintenance of belts or pulleys.
Equipped with a 7-inch Mitsubishi FX5U PLC touchscreen with material library, the H-18A offers intuitive operation, on-screen diagnostics, and the ability to store up to 999 jobs with a 10-job queue. Hydraulic automation throughout the vises, guide arms, and head movement ensures consistency, while and hydraulic overhead bundling configurations provide versatility for a wide range of cutting applications.
Performance Highlights
• Dual-post design ensures rigidity and square accuracy on every cut
• Servo-controlled shuttle reduces cycle time and improves repeatability
• Smart PLC controls simplify operation and reduce training time
• Heavy-duty construction and premium components extend machine life
• Ideal for steel service centers, fabrication shops, and high-volume production cutting
Imperial
| Rect-Cap (H) | 18" |
| Rect-Cap (W) | 18" |
| Rounds-Cap | 18" |
| Square-Cap | 18" |
| Power | 10 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.5" |
| Blade Length | 19.2" |
| Dimensions | 127” x 88” x 92” |
| Weight | 8,500 lbs. |
Standard Features
AutoSet Control with Material Library
Dual-Post Frame Construction
Automatic Multi-Indexing Shuttle
Hydraulic & Feed Systems
Laser Light
Direct-Drive Blade System
Operator Interface & Safety
Automatic chip-removal auger keeps the work area clean.
Robust steel base integrates coolant and hydraulic systems.
Easy-access panels simplify maintenance.
Replaceable wear plates extend machine life.
Replaceable blade brush cleans the blade and prevents chip buildup.
