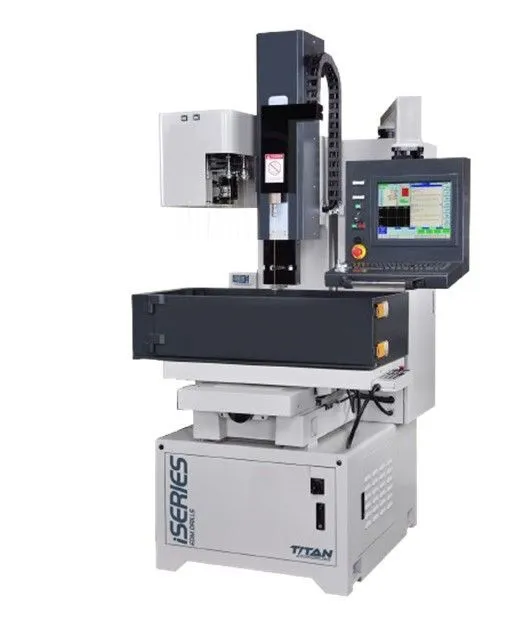

TITAN i40C
ConditionNew
New
Built in filtration system with deionizing resin system
Small footprint to optimize floor space
Stainless work surface for mounting tooling
Automatic electrode compensation
Pre-defined cutting technology database
Travels
X, Y Axis: 16.0" x 12.0"
Z Axis: 14.0"
W Axis: 14.0"
Table
Worktable Size (X/Y): 26.0" x 16.0"
Work Tank Size (X/Y): 39.0" x 24.0"
Max Heigh of Workpiece: 14.0" (Optional accessory to 16.0")
Tooling Specs
Electrode Diameter: Ø .008" ~ .118" (Optional accessory from .118"-.236" or .004"-.008")
Max Length of Electrode: 16.0"
Generator Specifications
Type: Input power AC / Discharge output DC
Switching: High Current FET
Amperage: 50A
Amperage Setting: 3 steps
On-time Setting: 7 steps
Off-time Setting: 5 steps
Servo Feedrate: 1200mm/min
Meters: Voltmeter
*Voltage regulator recommended for environments experiencing fluctuations +/- 10% of rec. voltage
Utilities/Enviromental
Input Power: 3 Phase, 2080VAC, 60Hz, 3.5KVA
Ambient Temperature: 55-75 Degrees Fahrenheit
Relative Humidity: 40-50%
MACHINE RIDIGITY
• Cast Iron Frame FC35 heat treated and stretched ensures long term accuracy and high rigidity
• Stainless Worktable heat treated, maximizes precision and excellent electrical conductor
• Stainless Steel Rail System eliminates the need for expensive fixturing
• Isolated Cabinet Design completely separates internal plumbing from electrical components
• Direct motor couplers to servo system compensate for axial deviation
• Glass Scale Feedback on X, Y Axis enables closed loop feedback system using glass scales
EXTERNAL FILTRATION SYSTEM
• 30 gallon closed loop filtration- clean / dirty sides
• 20” pleated 5 micron filter, pressurized housing
• Connections for resin bottle (optional 1035 bottle)
MACHINE TOOLING (STANDARD)
• M8 stainless steel inserts / 2 workpiece clamps
• Stainless steel tooling rails with T slots
• Stainless steel tooling cross rails for fixture mounting
• 10pc 1mm electrodes, 1pc 1mm guide, 5pc 1mm seals included
• Keyless drill chuck
AUTOMATIC ELECTRODE CHANGER (OPTIONAL)
• Air magazine system proven, stable, repeatable, low maintenance tool changer
• Depth probing allows for mid-hole tool changes without losing depth accuracy
• Includes 10 chucks for each position (no other tooling required to operate)
6MM SPINDLE TOOLING SET (OPTIONAL)
• Increases maximum electrode capacity from 3mm to 6mm
• Machines without ATC option; includes ER16 collet chuck and ER16 Collet set (3-6mm)
• Machines with ATC option; includes 2pc ER16 collets (3-6mm) with arbors
• Stainless Steel ER16 collets sold separately
SOFTWARE FEATURES
• Embedded Windows CE operating system allows for controller flexibility and HMI customization
• Standard G code programming G and M code programming; NC and DXF file reading function
• Automatic electrode compensation offers automatic reset and depth calculation of Z axis
• Soft start feature reduces burr formation by changing amperage levels during the burn process
• Cutting technology storage allows for user defined setting management and sample test bank
• Programmable work piece pickup ID, OD, cylindrical and shapes
• Depth control / blind hole capabilities offer automatic probing of hole depth
• Multiple work piece setup allows for simultaneous programming and machining
• On screen editing offers point and click programming options with hole elimination
• Dry run function with single block option
• Drilling timer both cycle time and program time
• Program input by USB, or Ethernet
