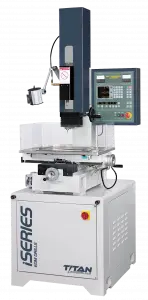

TITAN I25

MACHINE RIDIGITY
• Cast Iron Frame FC35 heat treated and stretched ensures long term accuracy and high rigidity
• Stainless Worktable heat treated, maximizes precision and excellent electrical conductor
• Stainless Steel Rail System eliminates the need for expensive fixturing
• Isolated Cabinet Design completely separates internal plumbing from electrical components
• Direct motor couplers to servo system compensate for axial deviation
• Glass Scale Feedback on X, Y Axis enables closed loop feedback system using glass scales
MACHINE CONTROLLER
• Micro Discharge Function electrode consumption saving and qualified hole processing
• Electrode Setting Storage allows for user defined setting management and sample test bank
• Manual Work Piece Pickup ID, OD, cylindrical and shapes
• Automatic Electrode Compensation offers depth controlled consistent breakthrough
• Digital Readout X, Y, Z
• Rapid Z axis fast movement and programmable Z axis
• Auxiliary Flush for cleaner and quicker hole burning
• Safe Power Off the machine is capable of retaining data in case of a power outage. All machining data and position values are stored automatically when a power failure occurs
• Auxiliary I/O Device Hookup Allows for indexers or other work holding devices

EXTERNAL FILTRATION SYSTEM
• 30 gallon closed loop filtration- clean / dirty sides
• 20” pleated 5 micron filter, pressurized housing
• Connections for resin bottle (optional 1035 bottle)

MACHINE TOOLING (STANDARD)
• M8 stainless steel inserts / 2 workpiece clamps
• Stainless steel tooling rails with T slots
• Stainless steel tooling cross rails for fixture mounting
• 10pc 1mm electrodes, 1pc 1mm guide, 5pc 1mm seals included
• Keyless drill chuck
