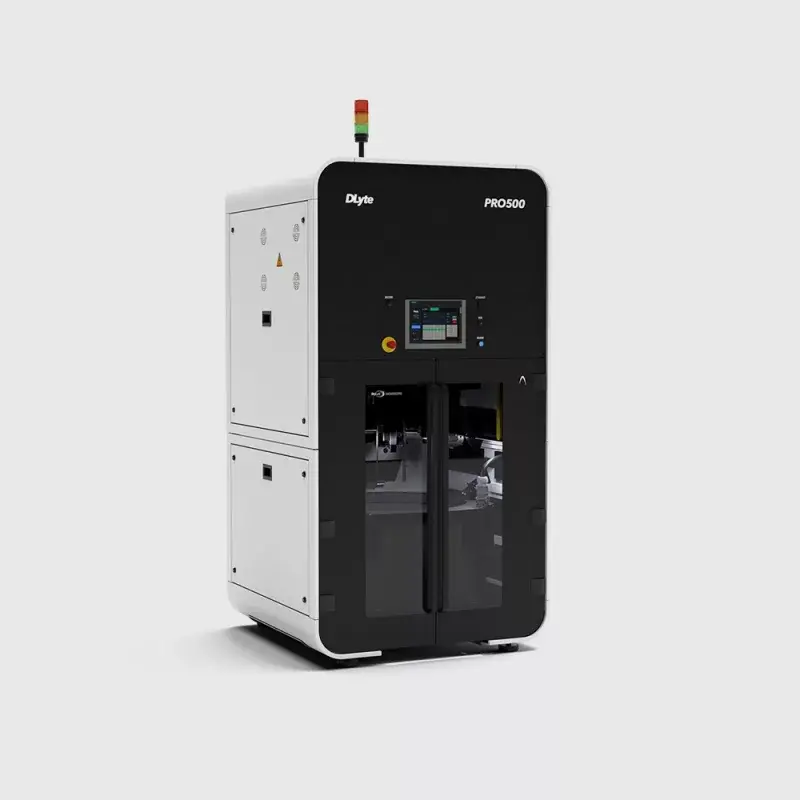

New DLyte PRO500 | Finishing

DIMENSION
- Machine dimensions 1,300 x 2,770 x 1,380 mm

CAPACITY
- Electrolyte capacity 250 l
- Holder + piece area
-- Ø500 x 540 mm (x1)
-- Ø360 x 540 mm (x2)
-- Ø 310 x 540 mm (x4)
-- Ø200 x 540 mm (x8)
- Work piece area
-- Up to Ø500 x 250 mm (x1)
-- Up to Ø 360 x 250 mm (x2)
-- Up to Ø 310 x 250 mm (x4)
-- Up to Ø200 x 200 mm (x8)
- Weight
-- 50 kg (work piece(s) + holder) (x1)
-- 20 kg (work piece(s) + holder) (x2) (x4) (x8)

MACHINE WEIGHT
- DLyte PRO500 weight 1600 kg
- Tank with electrolyte 400 kg

ELECTRICAL (1)
- Rated power from 11,5 KW to 25 KW (2)
- Short-circuit breaking capacity (ics) 6 kA
- Rated voltage 400 Vac ± 10% (3P+N+GND)
- Frequency 50 - 60 Hz
- Rated current 35 A
- Full load current 40 A
- Grounding connection TN system
- Earth leakage current > 10 mA (3)

AIR
- Air supply (Main line) 6 - 7 bar (air connector Ø10 mm)
- Air flow (two lines) 1,900 l/min (4)
- Air inlet pipe Ø20
- Air quality (ISO 8573-1:2010) 6. 4. 4 (ISO 8573-1:2010)

DISTILLED WATER
- Water supply Connection (Ø10 mm)
- Water tank 16 l

TEMPERATURE
- Operating 5°C to 35 °C
- DLyte PRO500 storage -10°C to + 70°C
- Electrolyte storage 5°C to 40°C (max. 24 months)
