New DLyte PRO500 MULTIPROCESS | Finishing
Have one to sell?
ConditionNew
New

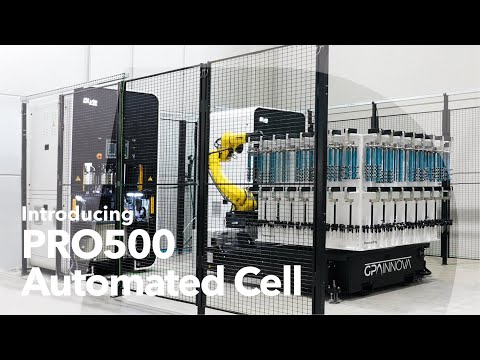

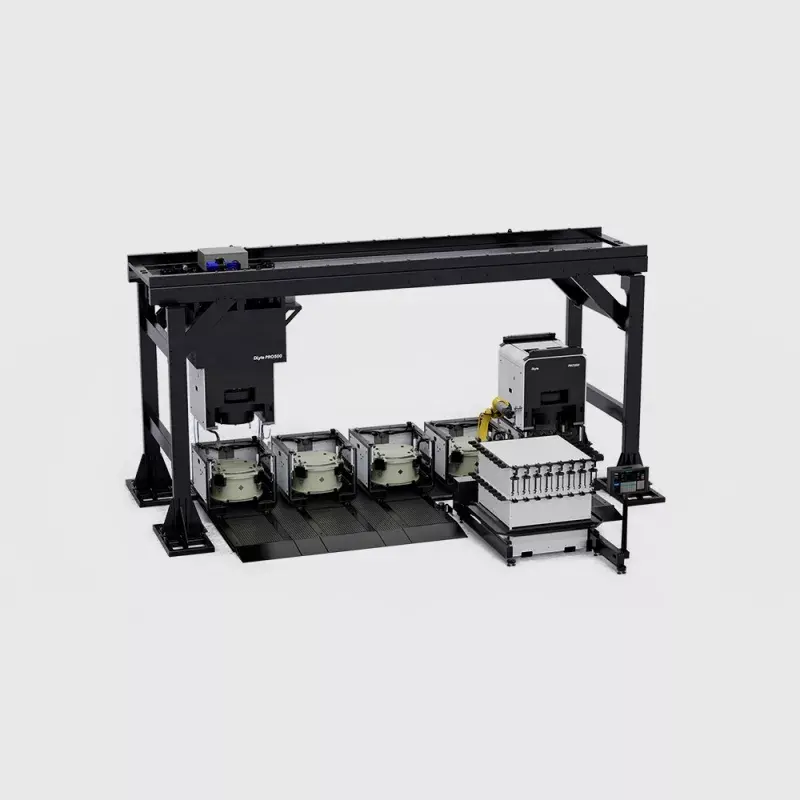

DLyte PRO500 Continuous Flow Multistep Installation is an
advanced industrial facility that utilizes the dry electropolishing
technology to polish metals to a high level of precision. The
installation is designed to integrate cleaning, rinsing, oil-based and
aqueous-based solution rinsing, and vapor and drying processes
through a matrix cell that transports the DLyte PRO500 core through
all the stages of the process without human intervention.
DLyte PRO500 Continuous Flow Multistep Installation offers a wide
range of configurations, with one or two DLyte PRO500 cores to carry
out more than one process simultaneously, and different working
tank configurations with up to five tanks. It can also incorporate a
robotic automatic loading system that integrates an autonomous
and intelligent intermediate storage system with a capacity of up to
eight cycles, allowing the system to operate with greater autonomy.
CHILLER SMC (x1 unit)
Electric power cooling 38 Kw
Electric power heating 8 Kw
MULTI-PROCESSED UPPER PART (x1 unit)
Electrical consumption 25 kW max
Consumed air flow 1000 l/min (top line on schematic)
Distilled water line Yes
MULTI-PROCESSED BOTTOM PART
Consumed air flow 1000 l/min (top line on schematic)
MULTI-PROCESS ROBOT GROUP (x1 unit)
Consumed air flow 300 l/min (top line on schematic)
Robot 35 kg 6 KW
Robot 70 kg 17 KW
PUMPING GROUP KIT FOR EACH STATION FOR TANK COOLING
Pump power consumption 0.12 kW
Chiller chilled water line Yes
UPPER MULTI-PROCESSED MOBILE SKATE
Electrical consumption (horizontal movement motor + hydraulic group) 5 kW max
