New DLyte eBlast | Finishing
Have one to sell?
ConditionNew
New

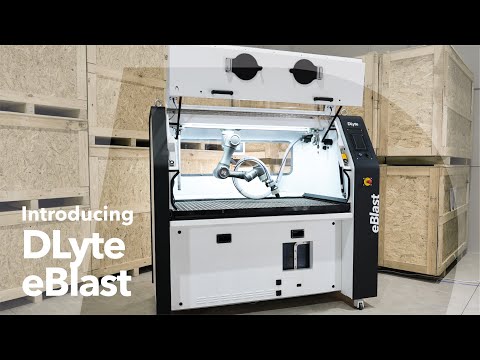

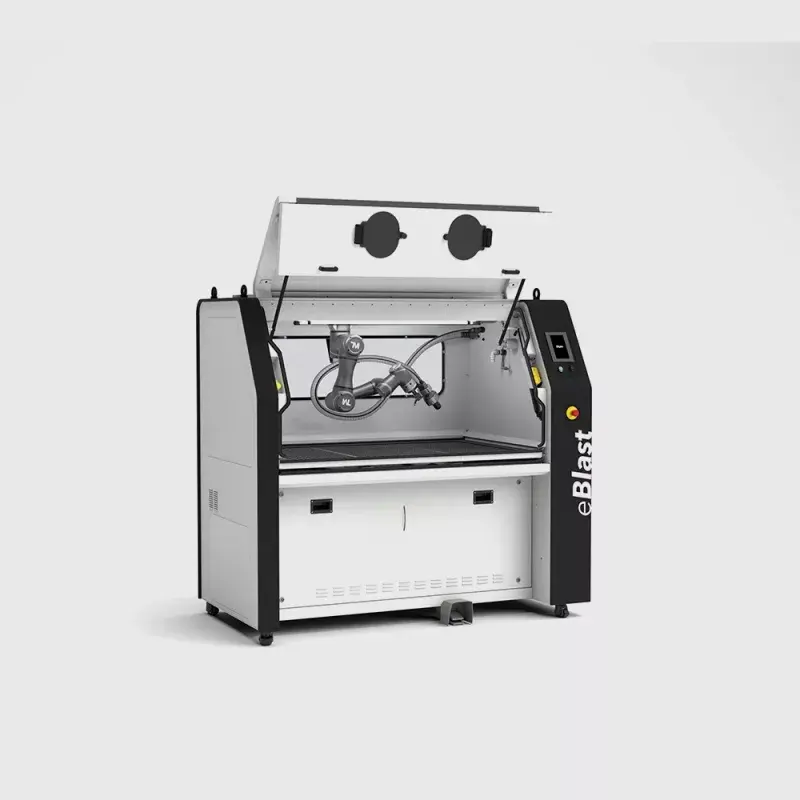

DLyte eBlast is an equipment that provides a stream of solid-
electrolyte particles propelled by a non-conductive liquid media
to improve the surface quality of metal parts using the patented
Electro Blasting technology.
Electro Blasting is an electrochemical metal surface finishing process
especially designed to to treat to a mirror finish metal parts with
complex geometries.
DLyte eBlast overcomes part size and weight limitations which are
present in abrasive and electropolishing systems by immersion, as
the piece can be treated locally and without the need of motion.
The equipment allows automated focused surfacing in two different
modalities to achieve the maximum polishing quality :
- Use of the collaborative robot (cobot) to selectively process the
required areas, especially for complex, large and heavy pieces.
- Use of the drum to Mass Finish multiple small pieces without
requiring fixation.
MACHINE
- Machine dimension 2,040 x 1,210 x 2,130 mm
- Window dimension 1,450 x 600 mm
- Machine weight 900 kg
ELECTROLYTE
- Electrolyte capacity 90 l
PIECE CAPACITY Piece volume 1,000 x 500 x 500 mm
- Piece weight 200 kg
ELECTRIC
- Rated power (P) 3.5 KW
- Rated voltage 230 ± 10% Vac (P+N+PE)
- Frequency 50-60Hz
- Full load current 16 A
- Power cord plug CETAC 32A
ELECTROLYSIS GUN
- Electrolysis power 0 - 120 VDC, 0 - 120 V ~ (symmetric), 0 - 60 V ~ (asymmetric)
- Electrolysis consumption 0 - 60 A
- Electrolyte pressure 1 - 2 bar
AIR CONSUMPTION
- Air pressure 4 - 6 bar
- Air flow consumption Min: 200 l/min, Optimum: 400 l/min
- Air tube Ø 10 mm
EXHAUST GAS
- Exhaust gas hose Ø 130 mm
- Air flow 105 m3/h (X2)
OPERATING
- Operating (environment) 5 °C to 35 °C
- Humidity 30-70%
- Noise <70 dB (A)
STORAGE
- Machine storage -10 °C to +70 °C
- Electrolyte storage 5 °C to 40 °C (Check expiration date)
