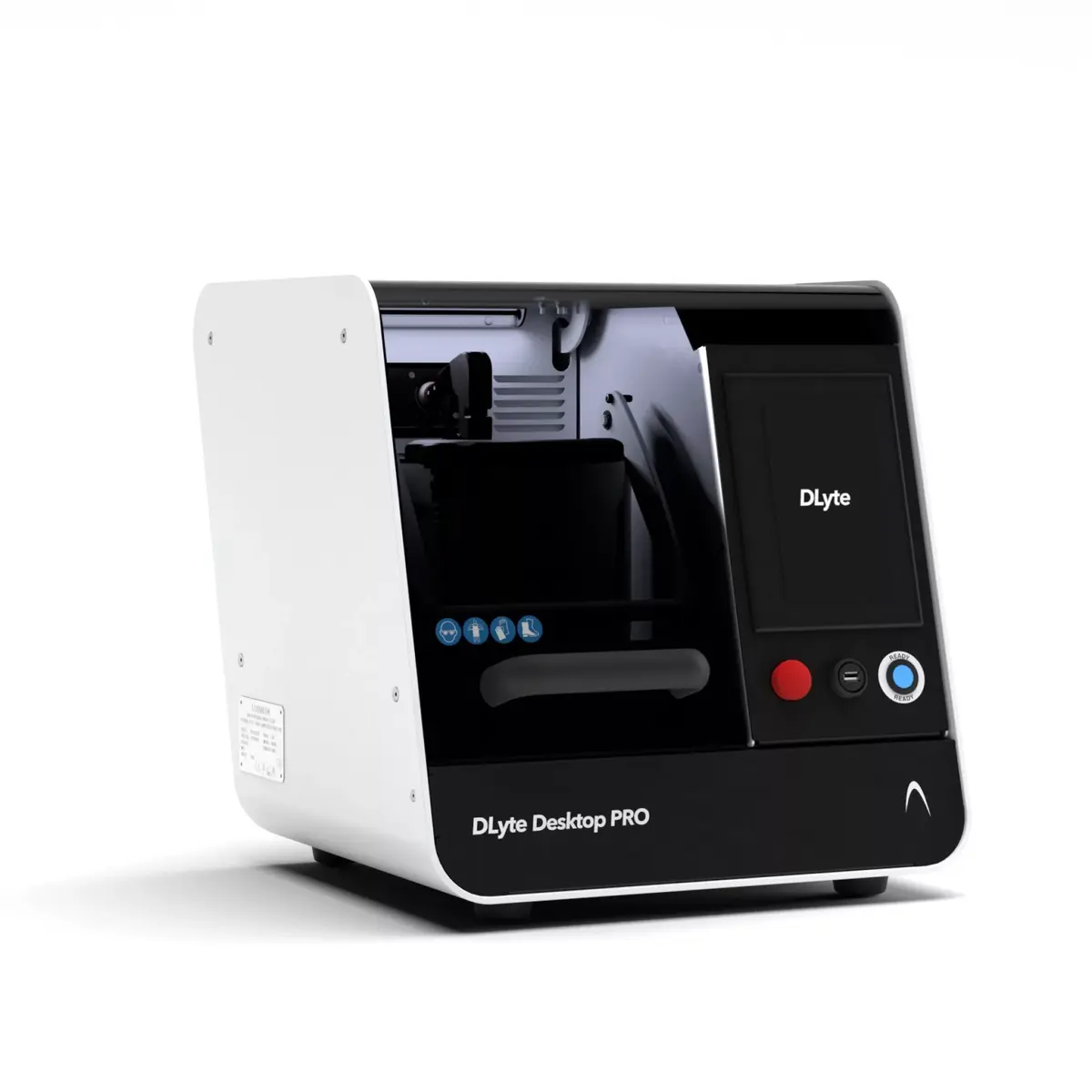

New DLyte Desktop PRO | Finishing
ConditionNew
1 available
New
DLyte Desktop PRO® is an ultra-compact system that gathers all the advantages of any DLyte system currently available on the market. From grinding to mirror finishing, this set-up offers an easy way to process any casting, sintering or milling metal parts. It provides high-quality polishing for Cobalt-Chrome, Titanium, and Stainless Steel parts. It can be used in a wide range of materials, thanks to its complete range of parameters, including a combination of a high/low frequency process. It has the capacity to polish one piece or more per working cycle within a maximum working volume of 80 x Ø 60 mm at an average processing time of 50 minutes.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Cathode set, holder finger, holder mixer, and holder checking tool included.
Capacity (per cycle) 1 piece
Maximum piece dimensions 80 x Ø 60 mm
Piece weight 0.5 kg
Machine dimensions 450 x 519 x 470 mm
Machine weight 43 kg
Power 1.7 kW
Full load current consumption 8 A
Voltage 230 V ~ ± 10% (1P + N + PE)
Frequency 50-60 Hz
Short-circuit break capacity (LCS) 0.3 kA
Grounding connection TN system
Protection Index IP 20 (polishing module)
IP 22 (electrical cabinet)
Sound pressure level <70 dB (A)
*Optional transformer kit 110 V - 230 VAC
