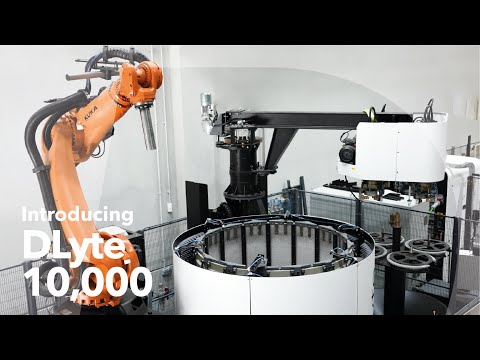

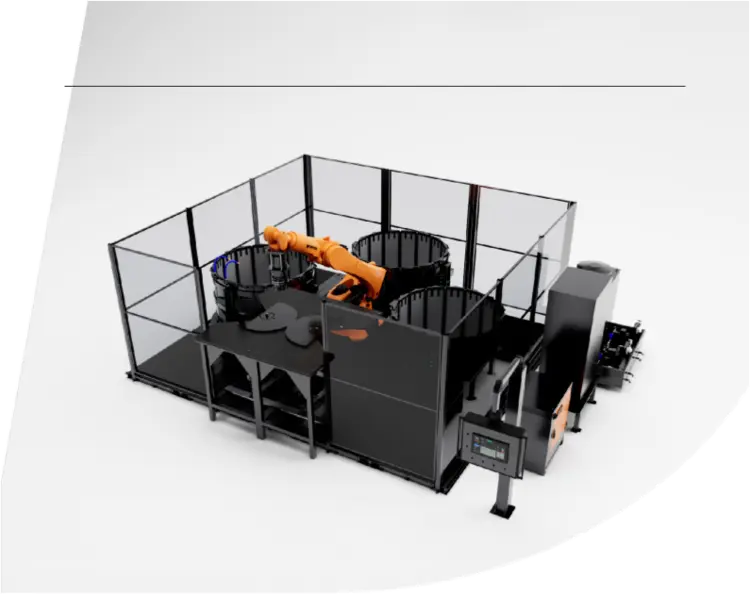

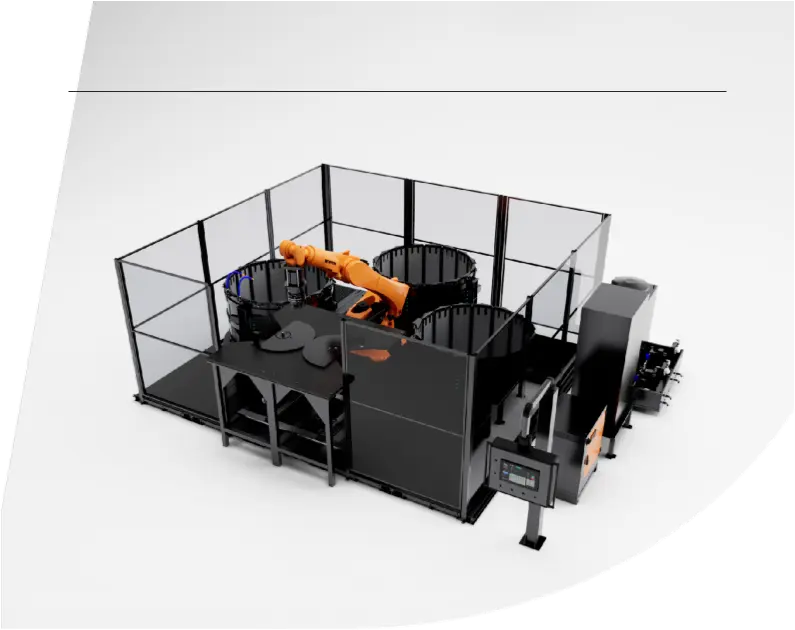

DLyte10,000 is the most powerful DLyte modular unit for polishing
large pieces and complex geometries. Based on the patented dry
electropolishing DryLyte Technology, the robot module allows to
treat metals and alloys in a fast, cost efficient way. To achieve the
highest quality results in complex and heavy pieces, it combines the
DryLyte Technology with a precise 6-axis mechanical movement, to
improve workpieces’ surface.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
+ Inner channels
Capacity (per cycle) 750 Ø x 600 mm (one piece centered to the robot axis).
Operating height 4,500 mm 4,500 mm
Operating layout
- 5,718 (front) mm x 4,507 (side) mm.
- (Recommended safety area: 8,110 mm x 9,307mm)
Floor requirements
It is recommended that the quality of the concrete must meet the requirements of the following standard: C20/25 according to DIN EN 206-1:2001/DIN 1045-2:2001 for a weight machine of 7,450 km without the scaffold (950 kg).
Power consumption 55 kw (125A)
Power supply 380 - 400 VAC / 50-60 Hz / 3P + N + GND
Air pressure main
Main line: 6–8 bar (air connector: 16 mm Ø) Consumption of 3,000 l/min. Air quality must be 1.5.1 according to ISO 8573.
Distilled water
70 l. demineralized water tank with conductivity properties < 5 μS/cm
according to ISO 3696.
Ventilation
The unit must be installed in a well-ventilated area. Otherwise, a forced
ventilation system must be installed on top of the unit.
Chiller 40 kw
