New DLyte 100PRO HYBRID | Finishing
Have one to sell?
ConditionNew
New

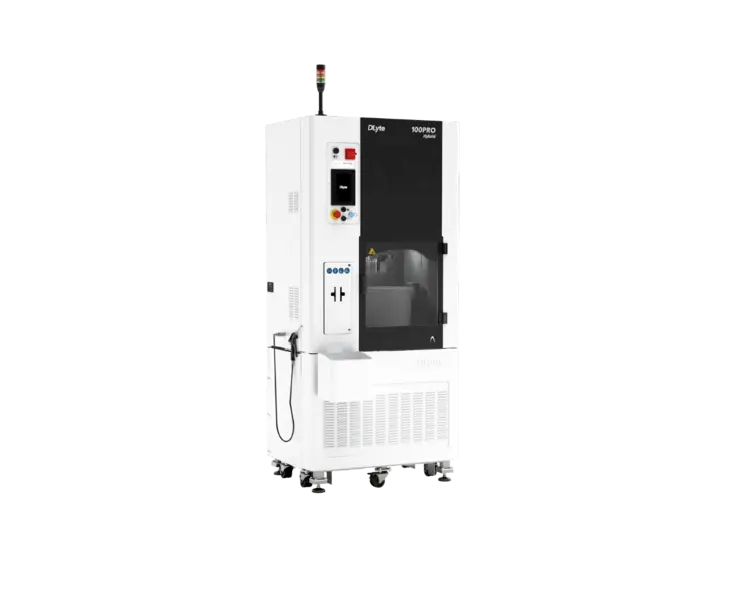

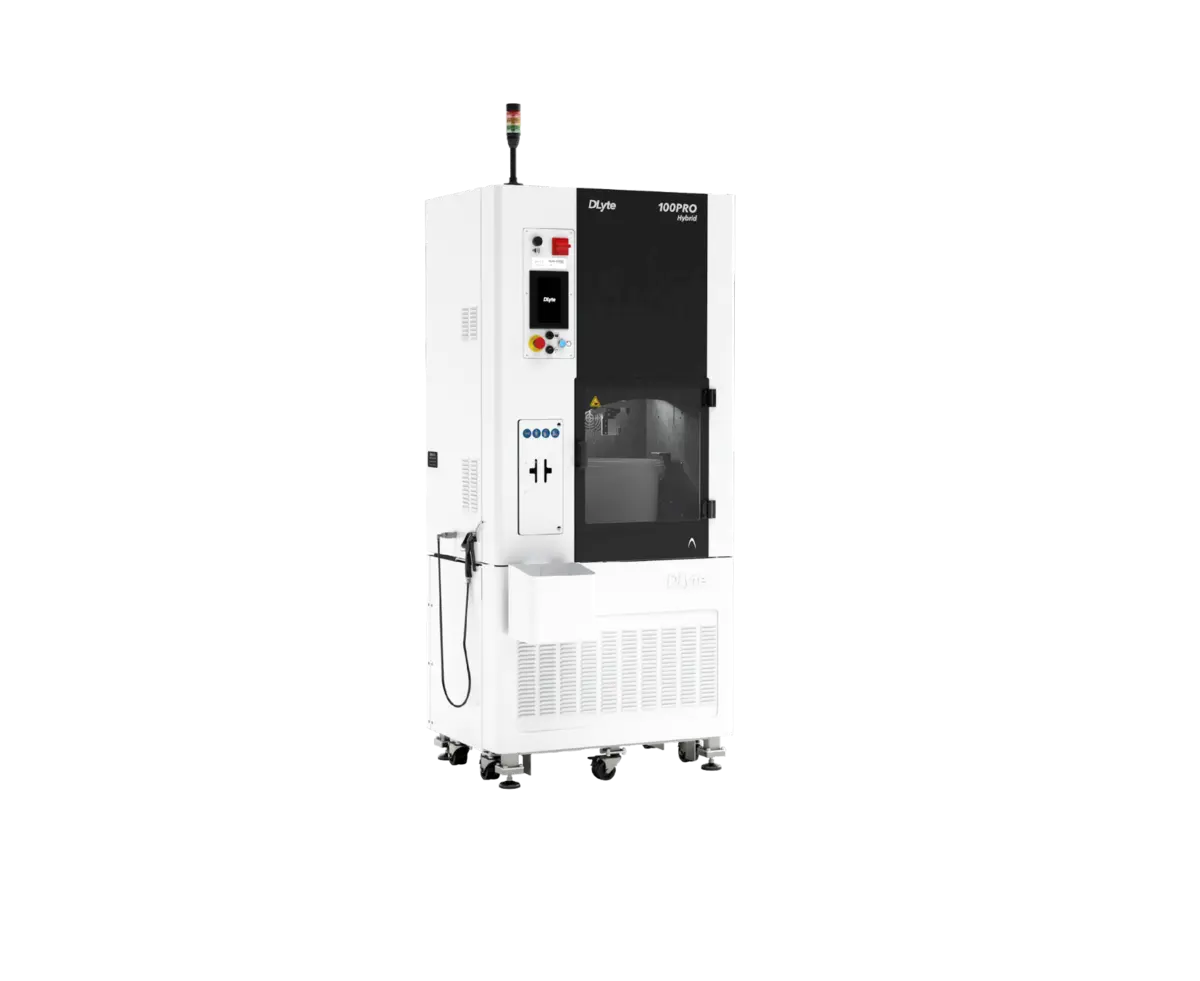

The DLyte100PRO Hybrid is the biggest compact machine
for industrial applications able to process parts with dry
electropolishing technology and hybrid technology. It combines a
planetary movement and a vertical backand-forth motion inside the
drum containing the media. It is suitable to treat materials included
in Steel group, Cobalt-chrome, Titanium group, Copper based alloys
group, Nickel based alloys group and Aluminum group materials.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
+ Inner Channels
Workbowl and holder are not included. Light tower, anti-vibratory
support with refrigeration system, conductivity and temperature
calibration system are included.
Capacity (per cycle) 180 Ø x 80 mm (maximum volume centered to the axis)
Machine dimensions 950 x 1,320 x 880 mm
Support dimensions 950 x 790 x 800 mm
Machine weight 241 kg
Anti-vibratory support weight 144 kg
Power (single phase with industrial plug) 5.5 kW (24 A) (single phase with industrial plug)
Voltage 230 V~ ± 10% (1P+N+PE) (Avalaible transformer kit 110-230 V~)
Air pressure 4-5 bar (air connector: 8mm or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 5:4:4*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
Storage capacity (Anti-vibratory support) 231 l
Distilled water tank capacity 6.5 l (drain valve included)
External antisabotage valve Yes
Noise level <70 dB(A)
HMI size Touchscreen LCD TFT 7”
Auxiliar 24 V connector inside cabin for holder accessories Yes
Ambient temperature operating 5ºC to 35ºC
Temperature storage -10ºC to +70ºC
Recommended humidity 30 - 70 % RH (without condensation)
