New DLyte 100PRO Carbide | Finishing
Have one to sell?
ConditionNew
New

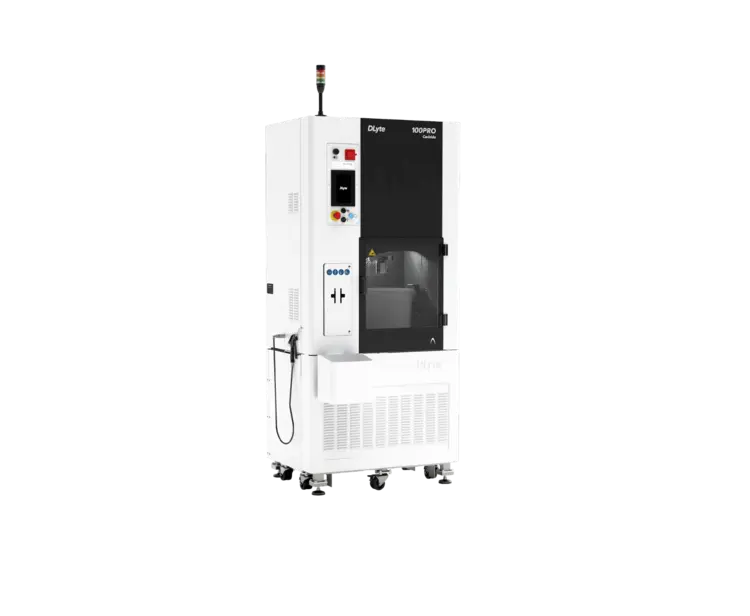

DLyte 100PRO Carbide is the biggest compact machine for industrial
applications. It combines a planetary movement and a vertical
backand-forth motion inside the drum containing the electrolyte
media. It is suitable to treat materials included in Steel group,
Cobalt-chrome, Titanium group, Copper based alloys group, Hard
metals group, Nickel based alloys group and Aluminium group
materials.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
+ Inner Channels
Workbowl and holder are not included. Light tower, anti-vibratory
support, conductivity and temperature calibration system are
included.
Capacity (per cycle) 180 Ø x 80 mm (maximum volume centered to the axis)
Machine dimensions 950 x 1,320 x 880 mm
Support dimensions 950 x 790 x 800 mm
Machine weight 274 kg
Anti-vibratory support weight 144 kg
Power (single phase with industrial plug) 5.5 kW (24 A) (single phase with industrial plug)
Voltage 230 V~ ± 10% (1P+N+PE) (Avalaible transformer kit 110-230 V~)
Air pressure4-5 bar (air connector: 8mm or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 5:4:4*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
Storage capacity (Anti-vibratory support) 231 l
Distilled water tank capacity 6.5 l (drain valve included)
External antisabotage valve Yes
Noise level <70 dB(A)
HMI size Touchscreen LCD TFT 7”
Auxiliar 24 V connector inside cabin for holder accessories Yes
Ambient temperature operating 5ºC to 35ºC
Temperature storage -10ºC to +70ºC
Recommended humidity 30 - 70 % RH (without condensation)
