New DLyte 100 | Finishing
Have one to sell?
ConditionNew
New

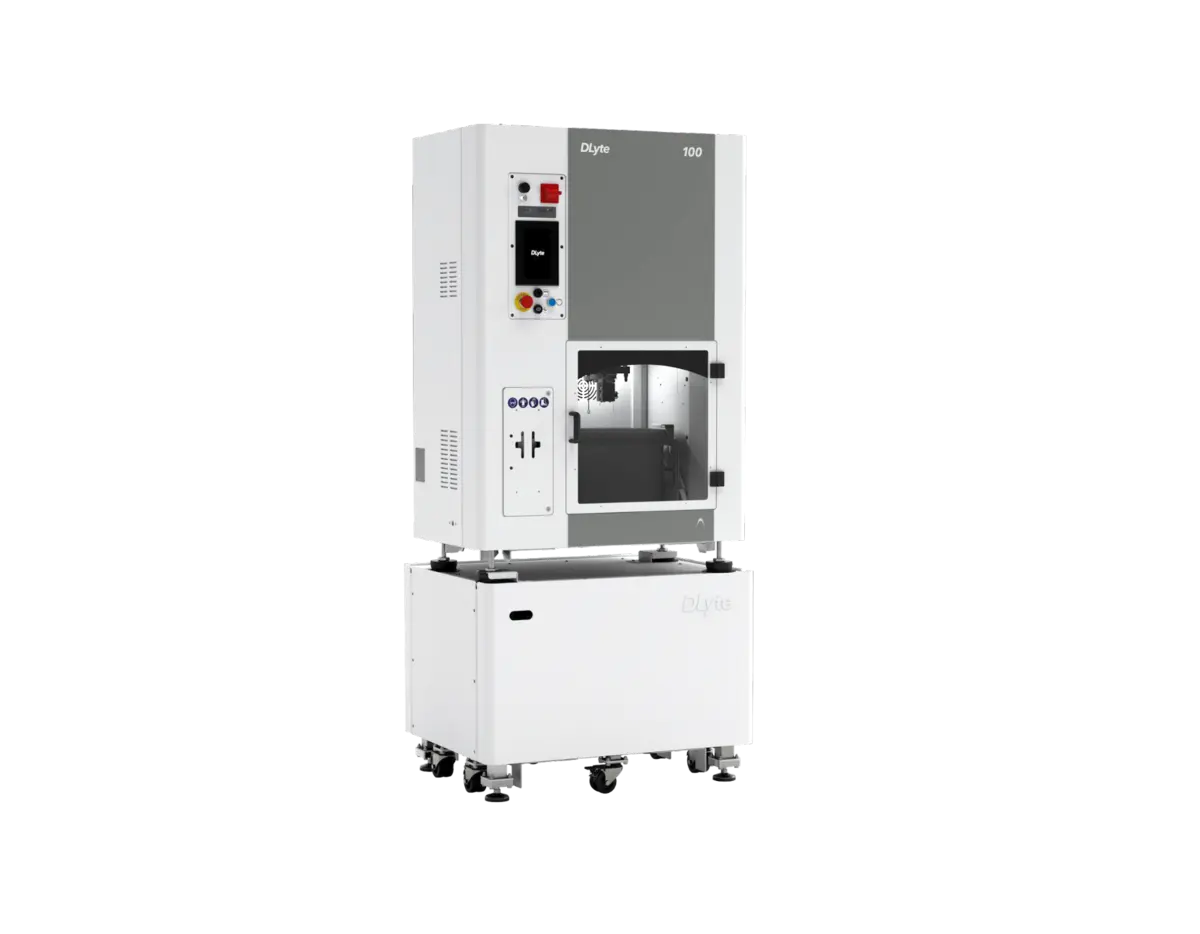

DLyte 100 is a metal surface finishing equipment using dry electropolishing technology for
companies with medium to large production. It is specially designed to treat high-value,
small, fragile and delicate parts that require high-demanding finishing requirements and
R&D purposes. Its one-step automatic process reduces the complexity of current multi-step
finishing processes, while improving cost efficiency and repeatibility. This machine does not
require a closed-up system to recycle water and sludge waste treatment machinery, therefore
decreseasing space, labor, and environmental licenses for waste management. It is suitable for
pieces with a working volume capacity of 180 Ø mm x 80 mm and a maximum weight of 5 kg.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Anti-vibratory system and Holder Checking Tool included.
Capacity (per cycle) 180 Ø x 80mm (maximum volume centered to the axis)
Machine Dimensions 949 x 1413 x 688,5 mm
Support Dimensions 949 x 690,6 x 744,9 mm
Machine Weight 217,5 (247.5 kg Cs Series)
Support Weight 100 kg
Power 5 kW (single phase with industrial plug)
Voltage 220 V - 240 V*
Air Pressure 4-5 bar (air connector: 8mmØ or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 1.5.1*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
