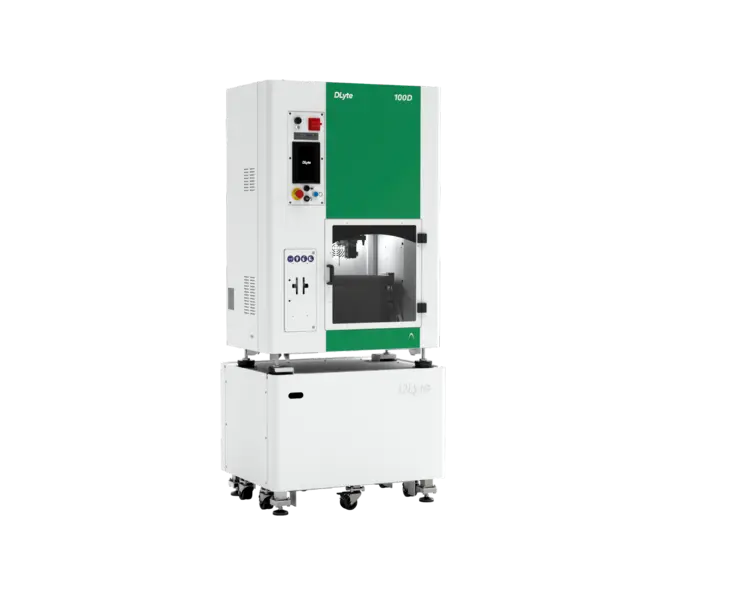

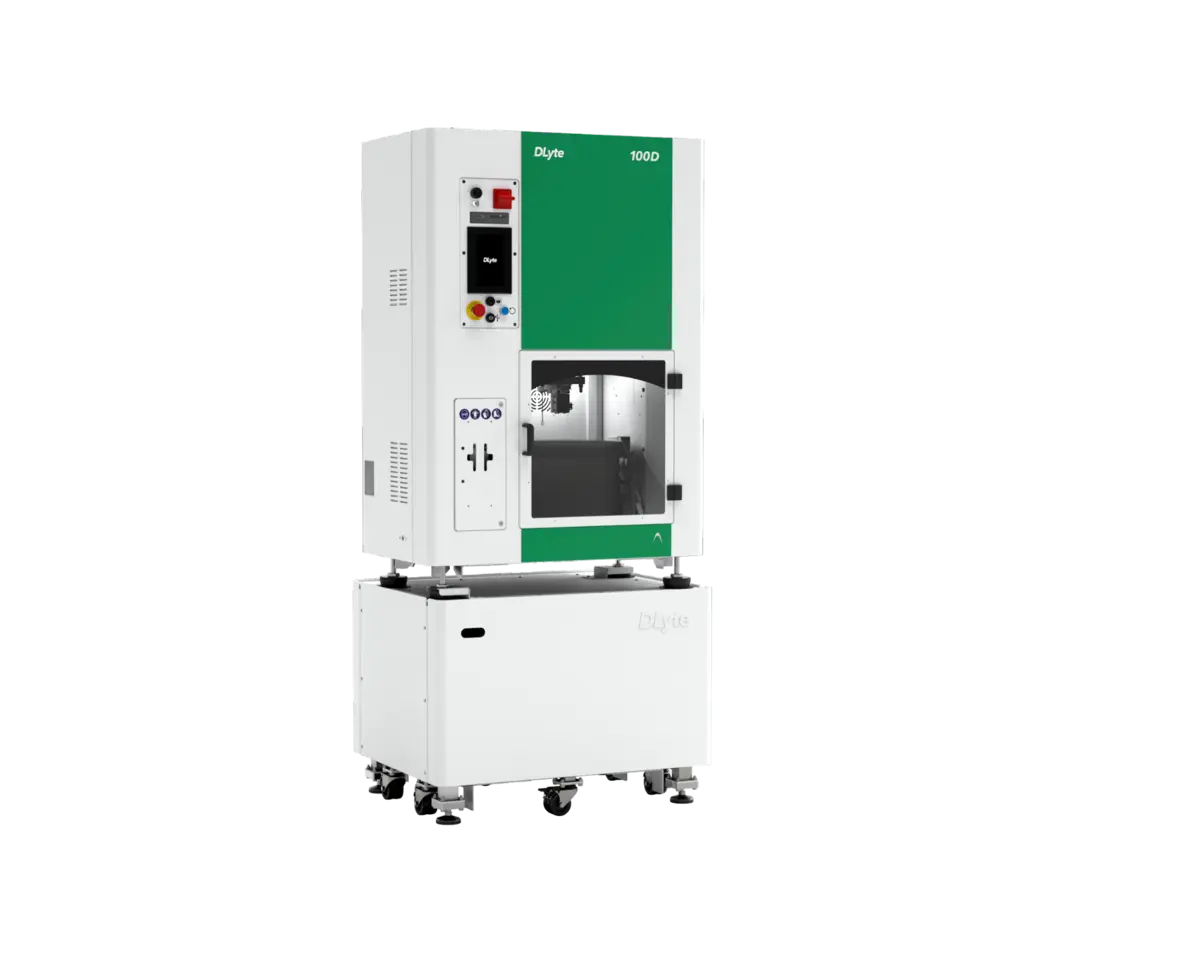

New DLyte 100D | Finishing
ConditionNew
New
DLyte 100D uses the dry electropolishing technology to polish any casting, sintered or milled pieces. It offers high-quality polishing for Cobalt-Chrome and Titanium for all types of spacers, crowns, bars, anatomical structures, implants and orthodontic supports. It has a capacity of 12 RPDs, 18 crowns, 18 bars for each working cycle with an average of 20-40 minutes time cycle. Its automatic one-step process reduces the complexity of current multi-step process substituting electrolytic bath and labor, therefore reducing costs and time, while achieving traceable and predictable results.
Anti-vibratory system and Holder Checking Tool included.
Capacity (per cycle) 12 RPDs, 18 crowns, 18 bars
Machine Dimensions 949 x 1413 x 688,5 mm
Support Dimensions 949 x 690,6 x 744,9 mm
Machine Weight 217,5 (247.5 kg Cs Series)
Support Weight 100 kg
Power 5 kW (single phase with industrial plug)
Voltage 220 V - 240 V*
Air Pressure 4-5 bar (air connector: 8mmØ or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 1.5.1*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
