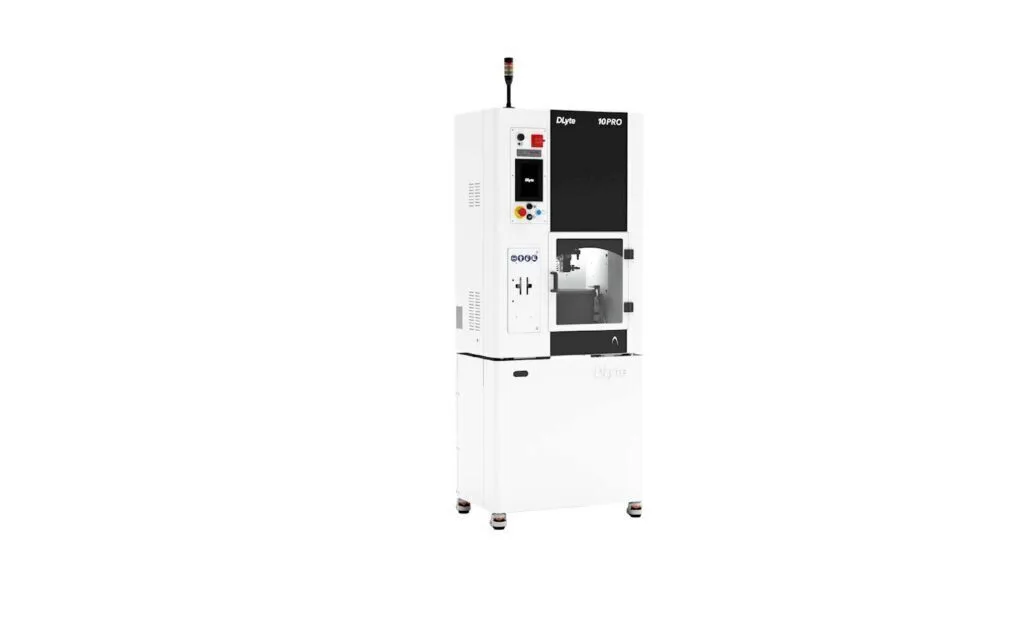

DLyte 10PRO is a metal surface finishing equipment using the dry
electropolishing technology, suitable for companies with medium
manufacturing volume. It combines a planetary movement and
a vertical backand- forth motion inside the drum containing the
electrolyte media. It is suitable to treat materials included in the
steel, cobalt-chrome, titanium, copper-based, nickel-based and
aluminium groups. Its advanced PLC-based electronics allows
to apply asymmetric pulses with low and high frequency, and
parameter concatenation.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Workbowl and holder are not included. Light tower, anti-vibratory
support, conductivity and temperature calibration system are
included.
* DLyte 10PRO Cooled includes anti vibratory support with
refrigeration system.
Capacity (per cycle) 140 Ø x 75 mm (maximum volume centered to the axis)
Machine dimensions 818 x 1,175 x 692 mm
Support dimensions 818 x 803.61 x 692 mm
Machine weight 174 kg
Anti-vibratory support weight 64 kg
Power (single phase with industrial plug) 3 kW (single phase with industrial plug)
Voltage 230 V ± 10% (1P+N+PE)*
Air pressure 4-5 bar (air connector: 8mm Ø or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 5:4:4*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
Distilled water tank capacity 3 l (drain valve included)
External antisabotage valve Yes
Noise level <70 dB(A)
HMI size 7”
Cabin Aux Connector for planetary motion holder accessory Yes
Tower light Yes
Frequency 50-60 Hz
Index of protection IP20 (polishing module)
Main axial turning Yes
Vertical (up/down) Yes
Holder vibration Yes
Media refrigeration Yes
