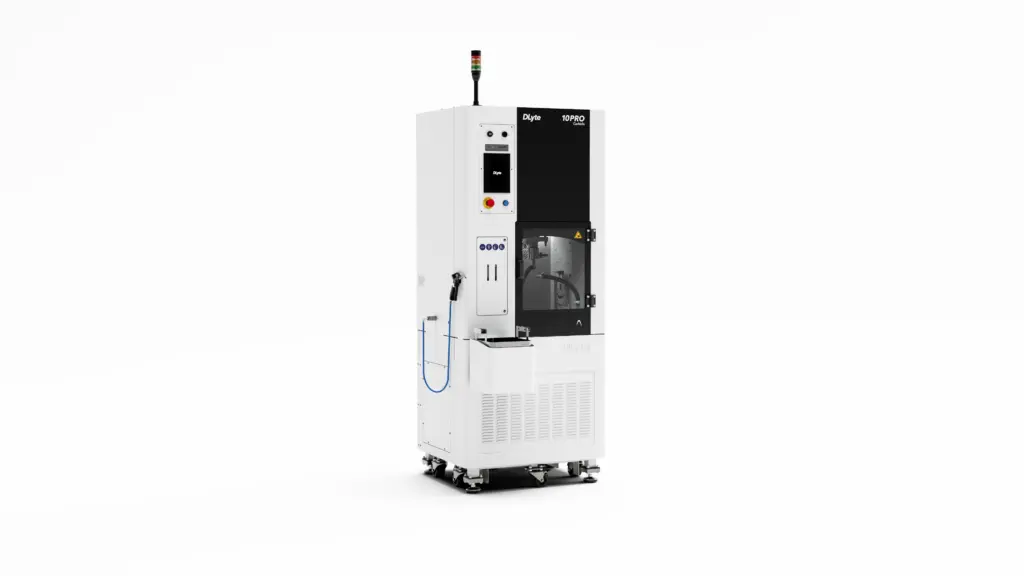

DLyte 10PRO Carbide
Have one to sell?
ConditionNew
New
DLyte 10PRO Carbide is a metal surface finishing equipment using the dry electropolishing technology, suitable for companies with medium manufacturing volume. It combines a planetary movement and a vertical backand- forth motion inside the drum containing the electrolyte media. It is suitable to treat materials included in the hard metal, steel, cobalt-chrome, titanium, copper-based, nickel-based and aluminium groups. The DLyte 10PRO Carbide’s advanced PLC based electronics allows to apply asymmetric pulses required to process carbides and a wide range of materials from low to high frequency, and parameter concatenation. In addition, it allows to control the holder rotations speed and direction, to precisely apply movements on each piece of the batch, ensuring homogeneous results.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Workbowl and holder are not included.
The DLyte 10PRO Carbide machine includes an anti-vibratory
support with refrigeration system, a light tower, and a conductivity
calibration system.
Capacity (per cycle) 140 Ø x 75 mm (maximum volume centered to the axis)
Machine dimensions 818 x 1,175 x 692 mm
Support dimensions 818 x 803.61 x 692 mm
Machine weight 225 kg
Anti-vibratory support weight 104 kg
Power (single phase with industrial plug) 3 kW (single phase with industrial plug)
Voltage 230 V ± 10% (1P+N+PE)*
Air pressure 4-5 bar (air connector: 8mm Ø or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 5:4:4*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
Distilled water tank capacity 3 l (drain valve included)
External antisabotage valve Yes
Noise level <70 dB(A)
HMI size 7”
Cabin Aux Connector for planetary motion holder accessory Yes
Tower light Yes
Frequency 50-60 Hz
Index of protection IP20 (polishing module)
Main axial turning Yes
Vertical (up/down) Yes
Holder vibration Yes
Media refrigeration Yes
