New DLyte 1 | Finishing
Have one to sell?
ConditionNew
New

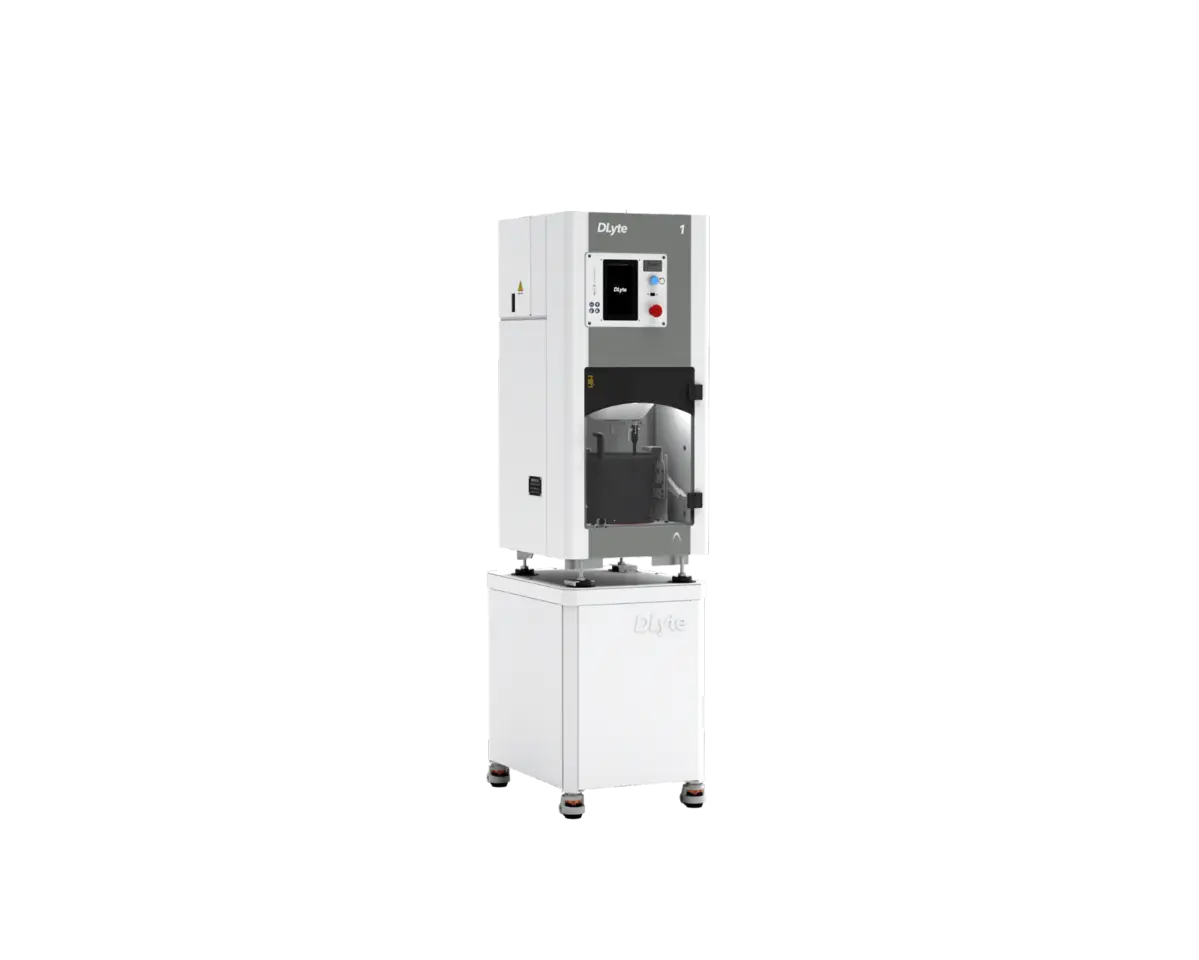

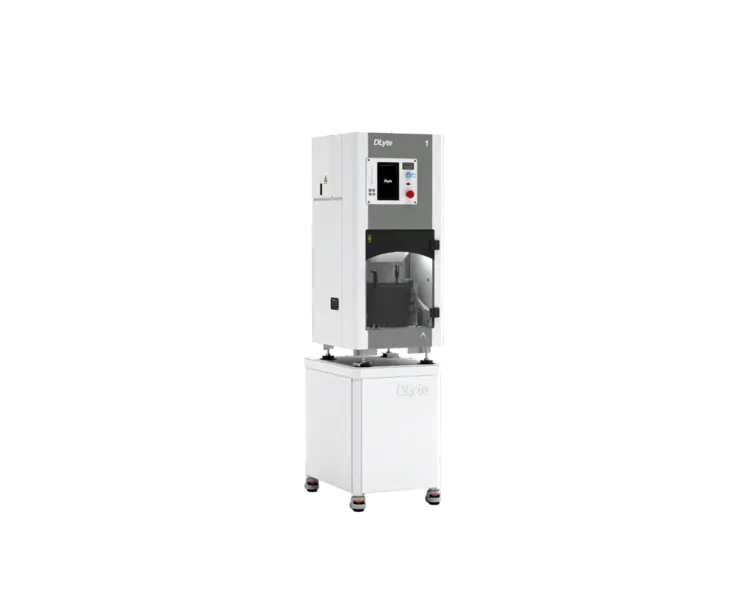

DLyte 1 is the smallest metal surface finishing equipment using dry electropolishing
technology in the Compact Series range. It is designed for high-value, very small and
fragile and delicate parts that require high-demanding finishing requirements, and for
R&D purposes. Its one-step automatic process reduces the complexity of current multi-step finishing processes, while improving cost efficiency and repeatability. This machine does not require a closed-up system to recycle water and sludge waste treatment machinery, therefore decreasing space, labor, and environmental licenses for waste management. It is suitable for pieces with a working volume capacity of 90 Ø mm x 70 mm, and a maximum weight of 1.5 kg.
Anti-vibratory system and Holder Checking Tool included.
FINISHING PROCESSES
+ Precision finishing
+ Smoothing
+ Mirror finishing
+ Deburring
+ Rounding
+ Corrosion resistance
+ AM post-processing
Capacity (per cycle) 90 Ø x 70mm (maximum volume)
Machine Dimensions 500 x 1,150 x 646 mm
Support Dimensions 500 x 717 x 672,4 mm
Machine Weight 96 kg
Support Weight 47 kg
Power 2 kW
Voltage 220 V - 240 V*
Air Pressure 4-5 bar (air connector: 8mmØ or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 1.5.1*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
