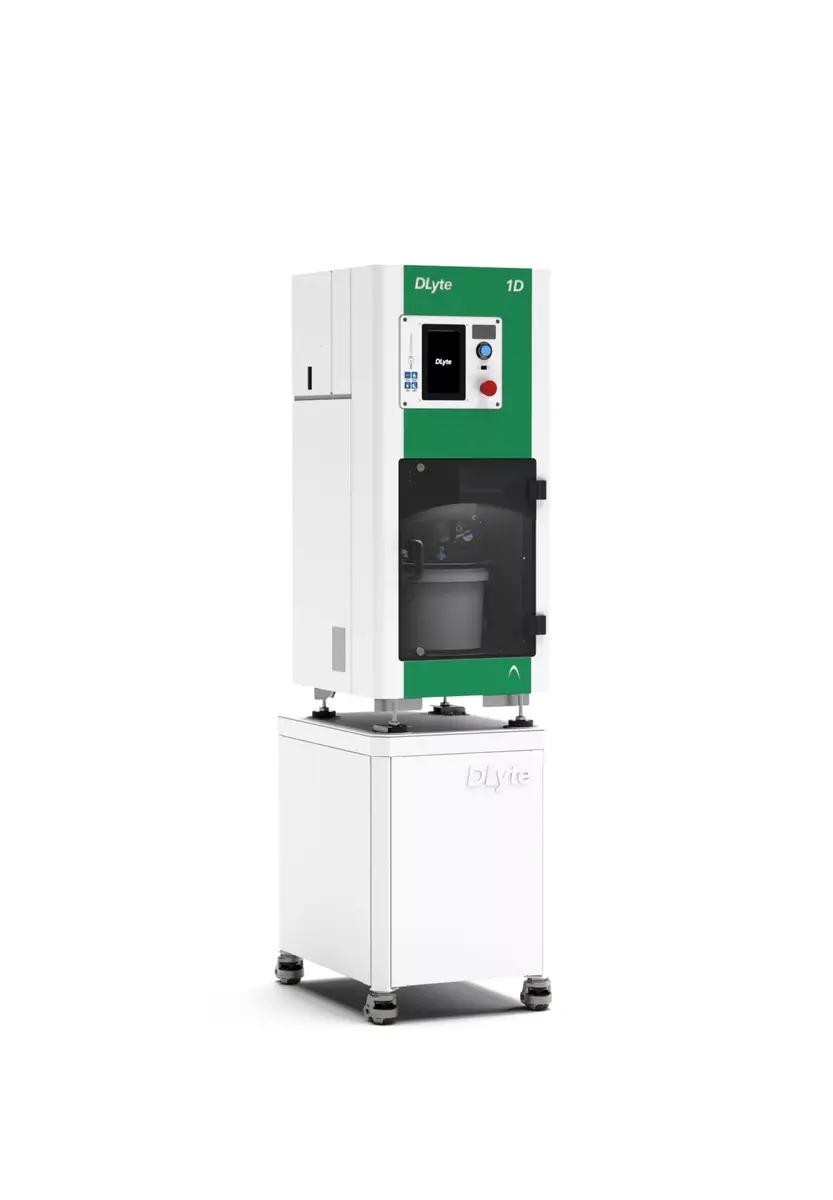

DLyte 1D uses the dry electropolishing technology to polish any casting, sintered or milled pieces. It offers high-quality polishing for Cobalt-Chrome and Titanium for all types of spacers, crowns, bars, anatomical structures, implants and orthodontic supports. It has a capacity of 4 RPDs, 8 crowns, 4 bars per working cycle with an average processing time of 20-40 minutes. Its automatic one-step process reduces the complexity of current multi-step process substituting electrolytic bath and labor, therefore reducing costs and time, while achieving traceable and predictable results.
Anti-vibratory support, a holder checking tool, and a holder head designed to hold holder fingers, bars, crowns, attachment, spring, and wire included.
Capacity (per cycle) 4 RPDs, 8 crowns, 4 bars
Machine Dimensions 500 x 1,150 x 646 mm
Support Dimensions 500 x 717 x 672,4 mm
Machine Weight 96 kg
Support Weight 47 kg
Power 2 kW
Voltage 220 V - 240 V*
Air Pressure 4-5 bar (air connector: 8mmØ or 1/4’ BSP’)
Consumption of 40 l/min. The air quality must be 1.5.1*
according to ISO 8573 . (*) Air quality required for a
maintenance every 6 months (change of filters).
