DLyte PRO500 AUTOMATED CELL Surface Finishing Process with Fully Automated Workpiece Handling
Have one to sell?
ConditionNew
New
DLytePRO500 AUTOMATED CELL AUTOMATED CELL is the ultimate solution for industries requiring full automation —or a multi-level DLyte process automation— to
integrate surface finishing in production lines.
This system allows customers to automate the process of loading and unloading holders into and from the machine, in order to increase the overall cell productivity working longer time autonomously and reducing the loading and unloading times.

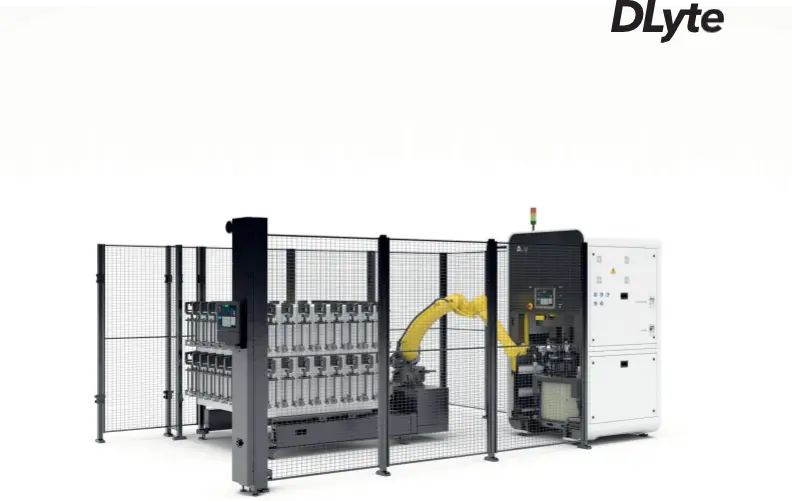

It combines the configurability of DLytePRO500 with a loading mechanism
which in turn comprises a robotic arm and rotating module. The rotating module
contains up to 64 pre-loaded holders with parts ready to be polished, allowing
the system to continuously work without the need of human interaction, thus
increasing productivity and safety.
DLyte Lyte PRO500
Machine dimensions 5,750 x 3,850 x 3,150 mm
Electrolyte capacity 250 l
Capacity (per cycle) Up to Ø180 x 250 mm (x64 pieces)
Work piece weight capacity 20 kg (workpieces + holder)
Machine weight
- DLyte PRO500: 1,600 kg
- Tank with electrolyte: 400 kg
Frequency 50-60 Hz
Rated voltage 400 V~ ± 10% (3P+N+GND)
Rated power supply 25 kW
Short-circuit breaking capacity (ics) 6 kA
Rated current 35 A
Full load current 40 A
Grounding connection TN system
Earth leakage current >10 mA (20 mA)
Main air supply
- Pressure: 6-7 bar
- Flow: 1,000 l/min *
- Connector: Ø 10 mm
Holder air supply
- Pressure: 6-7 bar
- Flow: 1,500 l/min
- Connector: Ø 12 mm
Distilled water tank capacity 16 l
Water continuous system Connector: Ø 10mm
Acid tank capacity 6.5 l
Ambient temperature operating 5°C to 35°C
Temperature storage -10°C to +70 °C
Humidity storage/operation 30-70 % RH (without condensation)
Electrolyte storage 5 °C to 40 °C (see the expiration date on the datasheet)
Protection index machine IP20
Robot + Cell
Machine dimensions 5,750 x 3,850 x 3,150 mm
Electrolyte capacity 250 l
Capacity (per cycle) Up to Ø180 x 250 mm (x64 pieces)
Work piece weight capacity 20 kg (workpieces + holder)
Machine weight
- Robot: 1,850 kg
- Cell: 280 kg
Frequency 50-60 Hz
Rated voltage 400 V~ ± 10% (3P+N+GND)
Rated power supply 5 KW
Short-circuit breaking capacity (ics) -
Rated current 10 A
Full load current 32 A
Grounding connection -
Earth leakage current -
Main air supply
- Pressure: 6-7 bar
- Flow: 250 l/min
- Connector: Ø 8 mm
Holder air supply -
Distilled water tank capacity 16 l
Water continuous system Connector: Ø 10mm
Acid tank capacity 6.5 l
Ambient temperature operating 5°C to 35°C
Temperature storage -10°C to +70 °C
Humidity storage/operation 30-70 % RH (without condensation)
Electrolyte storage 5 °C to 40 °C (see the expiration date on the datasheet)
Protection index machine IP20
