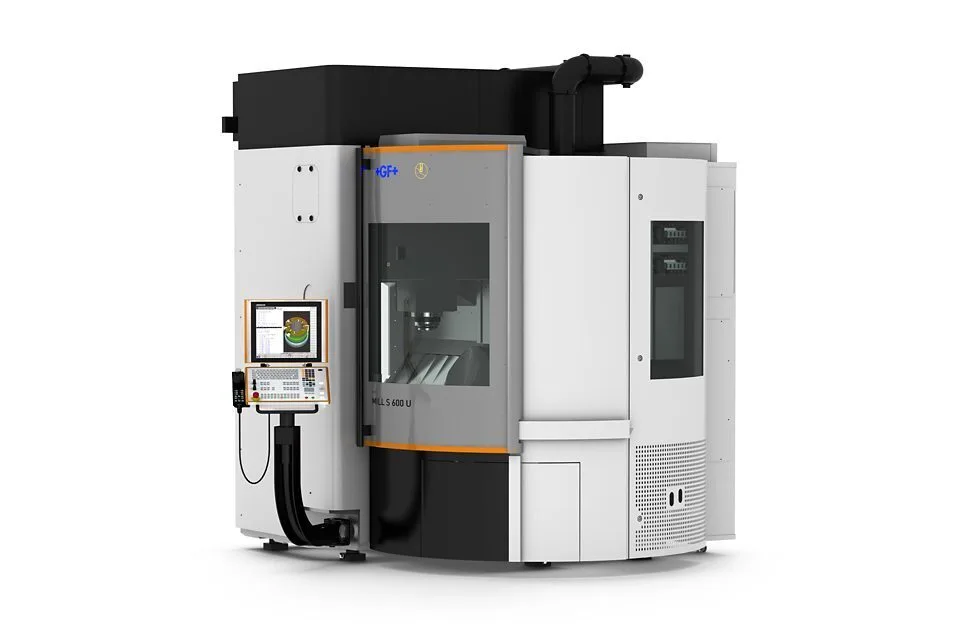

New GF MILL X 600U | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New
Dynamic, precise machining for perfect finishes
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine. With an optimized thermal management system and the possibility to easily integrate Automation, the Mikron MILL S/X U series is the perfect match for customers who are looking to optimize their processes.
Travel X,Y,Z
800 x 600 x 500 mm
31.5 x 23.62 x 19.68 in
Swiveling range
+30°
-110°
Rotary range
n x 360°
Rapid traverse X,Y,Z
61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse:
Swiveling / Rotating 60 / 150 rpm
Working spindle
(40% ED, S6) 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Pallet/clamping surface
Dynafix 280 x 280/350 x 350
GPS 240 x 240
UPC 320 x 320
Max. load (incl. pallet)
120 kg
264 lbs
Tool magazine
18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight
9,900 kg
21,825 lbs
Control unit
TNC 640 (Heidenhain)
