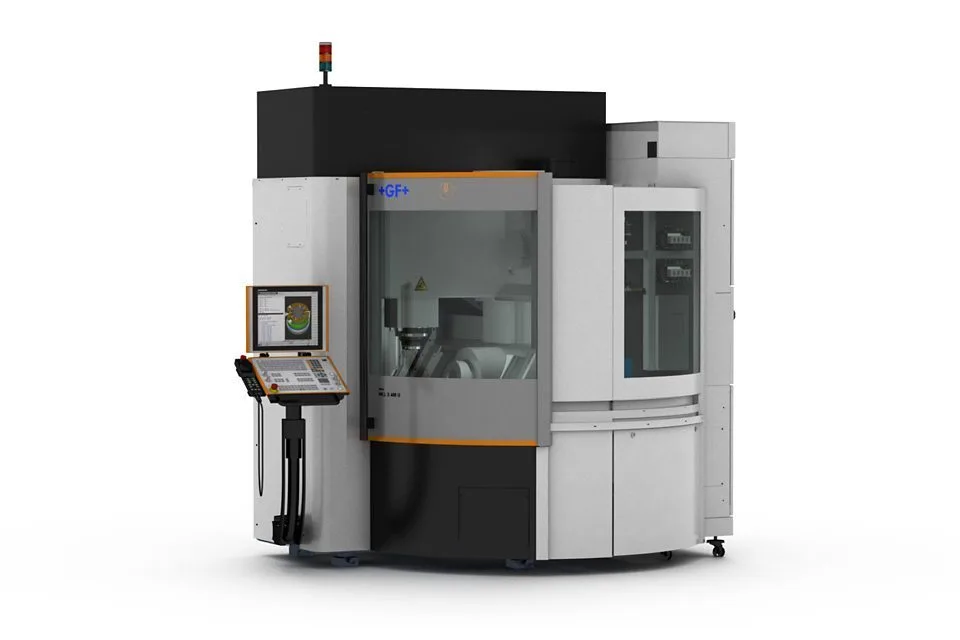

Dynamic, precise machining for perfect finishes
Achieve high dynamic, precision and surface finish in mold and part production with the highest productivity on the most iconic compact machine. With an optimized thermal management system and the possibility to easily integrate Automation, the Mikron MILL S/X U series is the perfect match for customers who are looking to optimize their processes.
Travel X,Y,Z
500 x 450 x 360 mm
19.68 x 17.72 x 14.17 in
Swiveling range
+110°
-110°
Rotary range
n x 360°
Rapid traverse X,Y,Z
61 m/min (MILL S)
2,401 in/min
100 m/min (MILL X)
3,937 in/min
Rapid traverse:
Swiveling / Rotating 165 / 250 rpm
Working spindle (40% ED, S6)
30,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Pallet/clamping surface
MacroMagnum 156
ITS 148
Max. load (incl. pallet)
25 kg
55 lbs
Tool magazine
18/36/68/168 (HSK-E40)
Machine weight
7,000 kg
15,432 lbs
Control unit
TNC 640 (Heidenhain)
