New GF CUT AM 500 | Wire EDM
Have one to sell?
ConditionNew
New

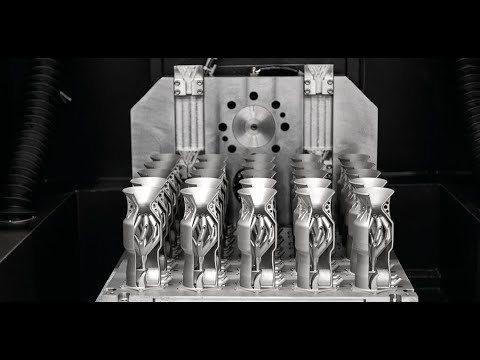

Unique EDM separation of AM parts

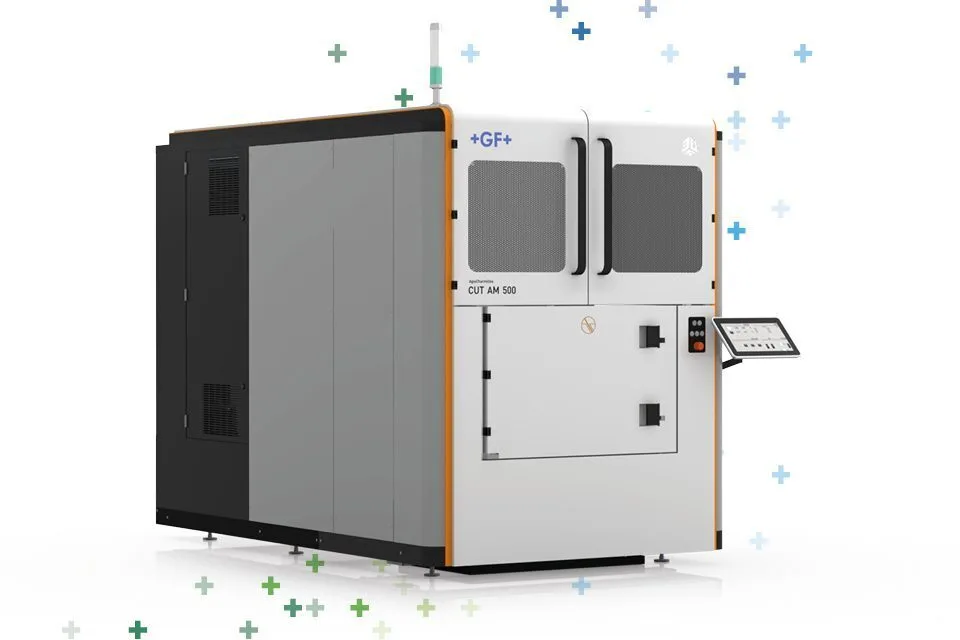

The universal AgieCharmilles CUT AM 500—based on GF Machining Solutions’ more than 65 years of legendary EDM expertise—makes a significant contribution to the AM process: It is a fast, precise, affordable and Automation-ready alternative to using standard EDM or a band saw to separate additively manufactured parts from the build plate. The CUT AM 500 is the perfect complement to GF Machining Solutions’ and 3D Systems’ scalable, workflow-optimized DMP Factory 500 and DMP Flex/Factory 350 3D metal printing solutions.
Dimensions of complete equipment (WxDxH) 1700x2953x2224 mm
Dimensions of complete equipment with lamp (WxDxH) 1700x2953x2608 mm
Dimensions of complete equipment with extraction system (WxDxH) 1700x2953x2708 mm
Total weight of equipment without dielectric 3220
Total weight of equipment with dielectric 4120
Tank volume 900L
Cutting specifications
Max. part dimensions
510x510x490
Max. part weight (base plate + parts) 500 kg
Y, Z Travel 650x200 mm
Y, Z measurement resolution 0.1 μm
Speed of axis movement 0-2000 mm/min
Wire type Molybdenum 0.2 mm
Max.machining speed 240 mm2/min
Min. roughness 6 μm (Ra) (according to geometries and technologies)
Accuracy ±0.1 mm
