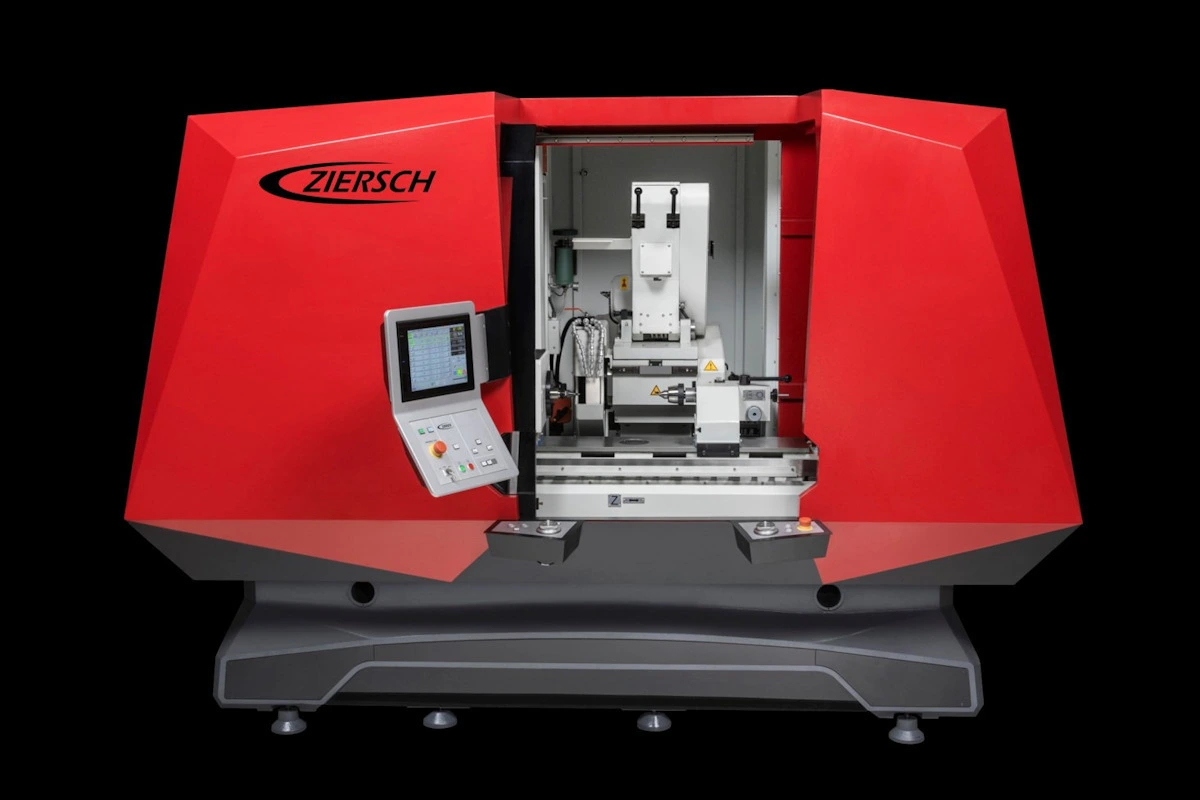

Ziersch cylindrical grinding machines feature efficient Z-control and fully automatic grinding and dress cycles. Operation is easy using the large touch screen and electronic handwheel in the X- and Y-axes. The heavy cast iron base provides maximum rigidity. Preloaded precision linear guideways in the X-axis (Bosch Rexroth) while hand-scraped horizontal slideways in the Z-axis provides vibration dampening, resulting in high accuracy, performance, and excellent surface patterns.
Features
• User friendly Z-Control with high comfort
• Automatic infeed with compensation of the dressing amount
• Fully automatic grinding cycle with dressing cycles
• Grinding cycles:
- Cylindrical grinding
- Shoulder grinding
- Roughing / finishing / sparking out
• Easy operation via touchscreen
• Large and clear colour screen 10,4"
• Electronic handwheel, usable in X- and Z-axis, adjustable increments of 0,001 and 0,01 mm
• Stable cast iron execution of all machine components
• High machine weight for max. rigidity
• Preloaded precision linear guideways in X-axis (Bosch Rexroth) for highest accuracy
• Scraped V slideways in Z-axis provide excellent damping characteristics and high quality micrograph
• Electro-mechanic longitudinal and cross motion
• Direct measuring system in X-axis (Heidenhain) for exact positioning
• Encoder in Z-axis
• Maintenance-free paper band filtration unit with 250 l tank> and 2 bar pressure pump for effective cooling and rinsing
• Integrated rinsing channel
• Magnetic separator for prefiltration
• Power supply: 400 volt, 3 phases, 50 hertz
• Infinitely variable grinding spindle motor
• Grinding spindle motor with constant cutting speed during the complete working range of the grinding wheel (vconstant)
• Super precision spindle bearings guarantee high durability
• Machine lamps
• Tailstock-mounted dressing unit for high precision and surface finish with a fixture for 1 dressing diamond
• Automatic central lubrication in Z-axis
• Partial encapsulation of the machine with sliding door
Capacity
- Center height mm 155
- Max. grinding diameter mm 300
- Max. distance between centers mm 1000
- Max. grinding length mm 1000
- Max. workpiece weight floating kg 45
- Max. workpiece weight between centers kg 150
X-axis
- Feed m/min 0.001 - 1.5
- Smallest feed at diameter mm 0.001
Z-axis
- Feed m/min 0.001 - 2
- Smallest feed mm 0.001
- Swivel angle of table degree +/- 11
Wheel head
- Driving motor KW 5.6
- Grinding wheel dimensions mm 400 x 50 x 127
- Cutting speed m/s 35
Internal grinding device
- Grinding spindle drive KW 1.5
- Grinding spindle diameter mm 80
- Spindle range rpm 20.000 / 30.000 / 40.000
Workpiece spindle head
- Taper hole Morse taper MK5
- Swivel angle degree +90° -30°
- Driving motor KW 0.75
Tailstock
- Spindle stroke mm 25
- Taper hole Morse taper MK4
Power
- Power requirement KW 8
Dimensions
- Machine weight kg 4.500
- Machine dimension (LxWxH) mm 2.900 x 2.500 x 1.700
