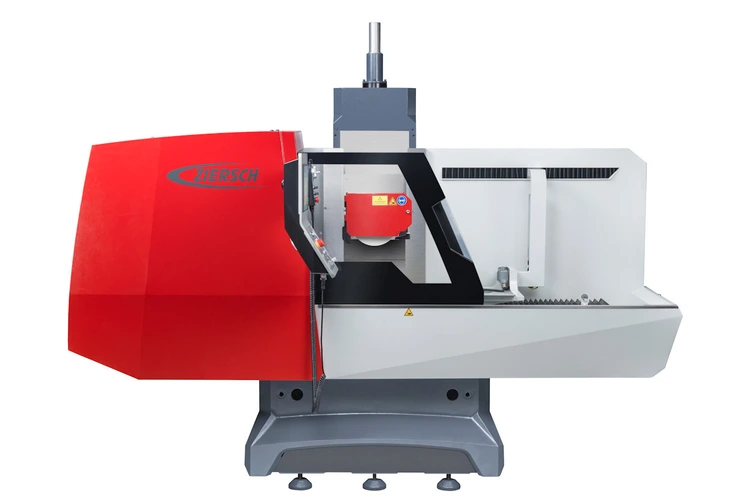

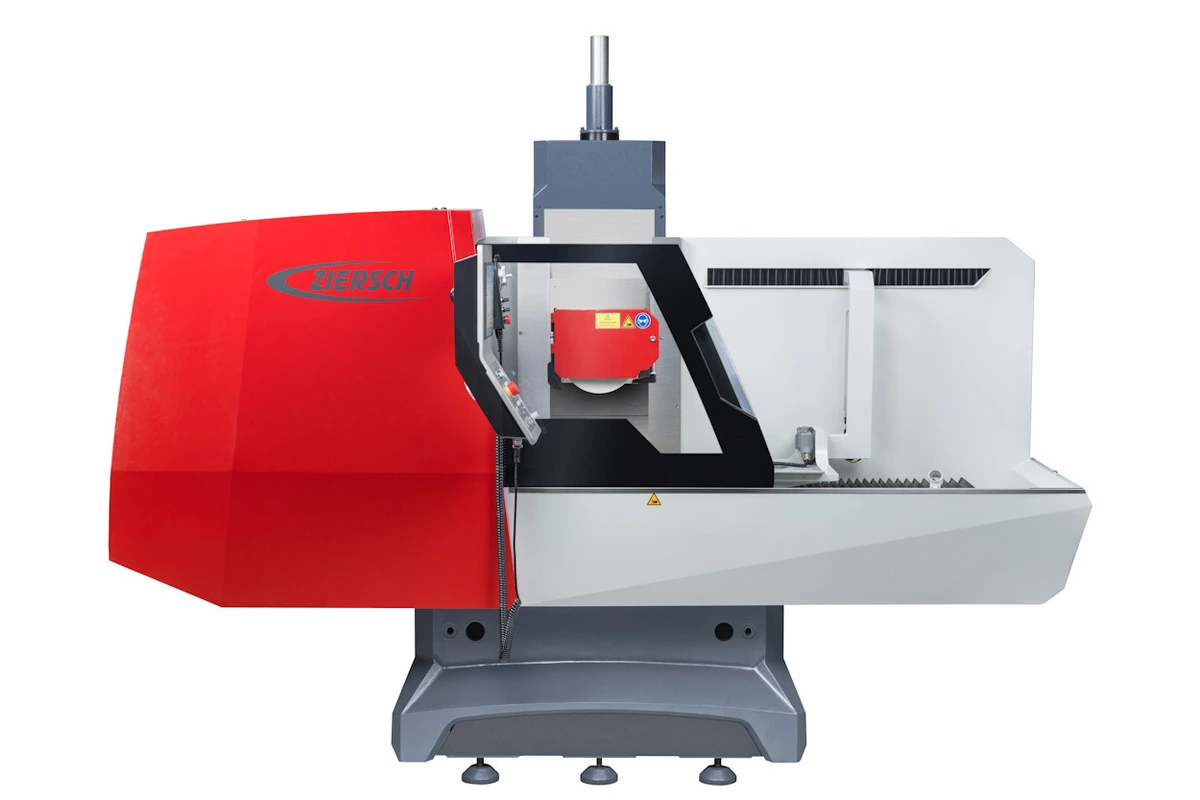

New ZIERSCH Z 35 | Reciprocating Surface Grinders
Have one to sell?
ConditionNew
New
Ziersch surface grinding machines are built on a sturdy cast iron base for maximum rigidity. Longitudinal axis slideways are hand scraped and coated with Turcite® for excellent vibration dampening, and preloaded precision linear guideways (Bosch Rexroth) and ball screws are used in the vertical and cross-axis to ensure high rigidity and accuracy. The machines are easy and comfortable to use with a large touchscreen display and fully automated grinding and dressing cycles.
Features
• Sturdy, cast iron execution of all machine components
• High machine weight for maximum rigidity
• Preloaded precision linear guideways in the vertical- and cross axis (Bosch Rexroth) for highest accuracy
• Scraped and turcite coated slideways in the longitudinal axis provide excellent vibration absorption and a high-quality grinding surface pattern.
• Hydraulic longitudinal motion with return cooling unit to achieve good surfaces
• Electro-mechanic cross- and vertical motion
• Measuring systems in vertical axis (Heidenhain) for precise positioning
• Maintenance-free paper band filtration unit with up to 500 l tank and 2-bar pressure pump for effective cooling and rinsing
• Integrated rinsing channel
• Magnetic separator for prefiltration of the paper band filtration unit
• Infinitely variable grinding spindle motor
• Machine lamp
• Table-mounted dressing device for high precision and surface finish
• Electro-permanent magnetic chuck (SAV) with integrated pole changing unit and traction regulation
• Partial encapsulation of the machine with sliding door and a service door
• Effective splash guard and an excellent accessibility
• Preparation of the machine for installation of a coolant mist exhaust unit
Control system features:
• Very comfortable and easy to operate Z-control
• Automatic vertical infeed with dressing amount compensation
• Fully automatic grinding cycle with dressing cycles
• Easy operation via touchscreen
• Large and clear color screen (10.4")
• Electronic handwheel, usable in vertical- and cross axis
Grinding range mm 500 x 350
Cross travel mm 330
Longitudinal travel mm 720
Distance table to spindle center mm 540
Size of magnetic chuck mm 500 x 300
Table load incl. magnetic chuck kg 500
Infeed longitudinal axis mm/ min 1.000 - 30.000
Infeed cross axis mm/ min 0,01 - 2.000
Infeed vertical axis mm/ min 0,001 - 1.500
Grinding wheel dimensions mm 250 x 38 x 50,8
Grinding spindle drive KW 5,5
Control range grinding spindle motor min-1 1.000 - 4.500
Machine dimension [L x W x H(max)] mm 3.037 x 2.447 x 2.508
Machine weight (approx.) kg 3.100
