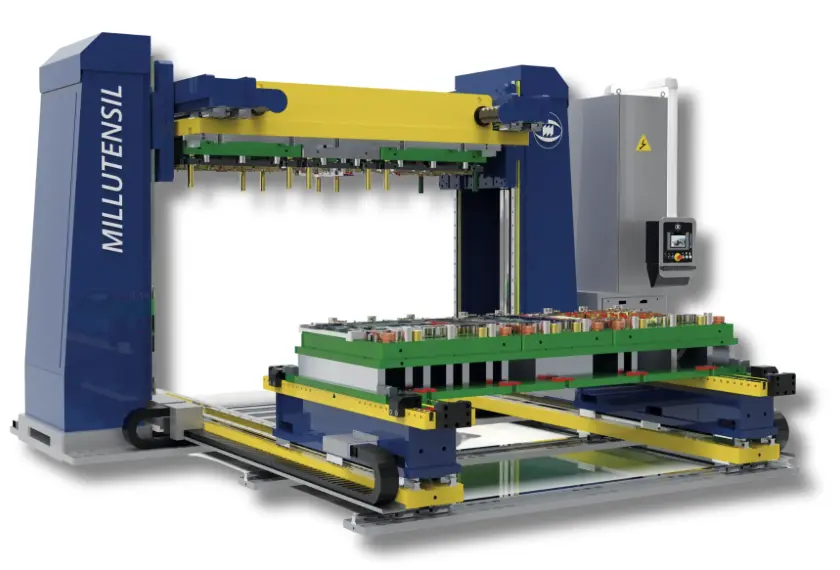

New MILLUTENSIL AM 3040 | Die-splitters
Have one to sell?
ConditionNew
New
The third model for big dies.
Up and down movement by recirculating ball screws activated by brushless motors. parallelism control by encoders. The die-splitter is monitored through Siemens PLC commanded by Touch Panel.
Platen dimensions are 4000×2000 mm (157×78 inches).
The max. load capacity on lower plate is 30.000 kg, while on the upper is 13.000 kg.
As all series, the AM 3040 can also be equipped with all optional accessories.
