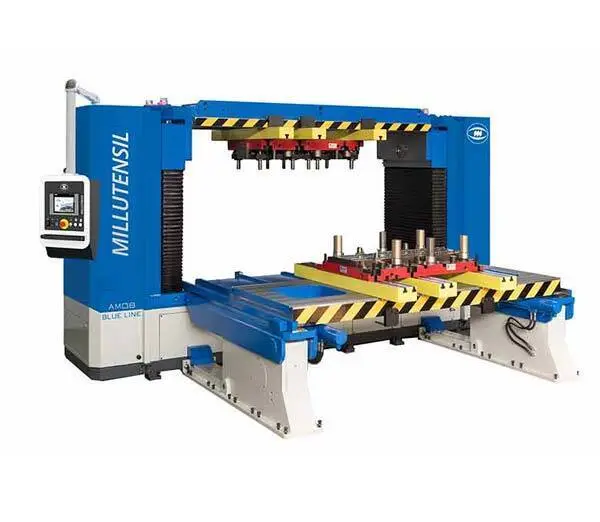

New MILLUTENSIL AM 08 | Die-splitters

Description

The third model for medium size dies.

The AM 08 is the first model with an hydraulic system controlled by electronic servo proportional valves and a control of parallelism. The control system includes measurement devices. They are integrated in the brushless engines and continuously check the die splitter upper plate position and parallelism compared to the lower plate. The die-splitter is monitored through Siemens PLC commanded by Touch Panel.
Platen dimensions are 2600×1470 mm (102×58 inches).
The max. clamping force is 150 kN.
The max. load capacity on lower plate is 8.000 kg, while on the upper is 3.500 kg.
As all series, the AM 08 can also be equipped with all optional accessories.
