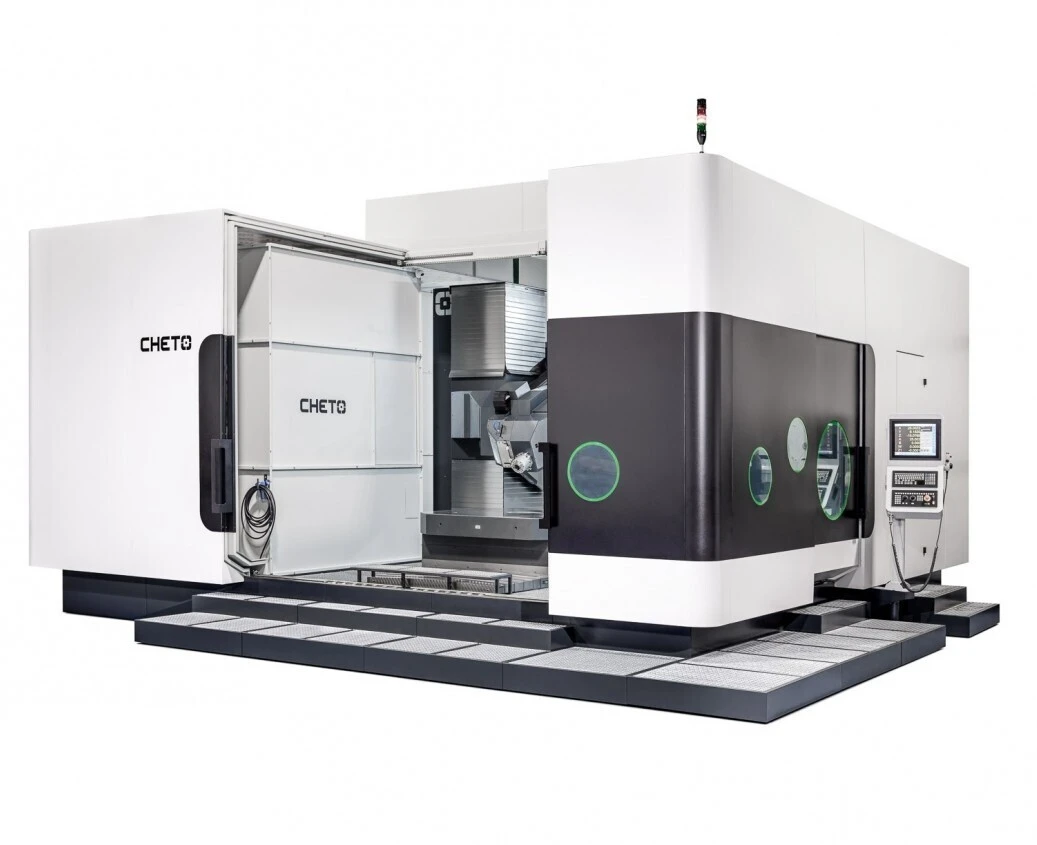

CHETO IXN 2000 Deep Hole Drilling and Milling
Have one to sell?
ConditionNew
0 available
New
The CHETO IXN Series includes the same all-in-one features of the SIC Series, but with greater travel and the added flexibility and productivity of 6-axis machining (with option for 7-axis). This model can also be equipped with an automatic tool changer up to 120 tools and an intelligent Wise software designed to optimize material cutting and extend tool life.
CNC AXIS
X longitudinal travel 2000 mm | 78.7 in
Y vertical travel 1200 mm | 47.2 in
Z cross travel 800 mm | 31.5 in
W drilling one stroke 1700 mm | 67 in
B table rotation 360,000 pos.
A tilting rotation +35º/-25º
DRILLING CAPACITY
Max. Drilling stroke W+Z 1700+800 mm | 67+31.5 in
Drilling Capacity ø5-40 mm | ø0.2-1.58 in
MILLING CAPACITY
Helical Threading Standard
Tapping M32
Milling 400 cm3/min | 24.4 in3/min
SPINDLE
Speed 0-6000 rpm
Spindle taper ISO 50 DIN 69871
Power 20/30 kW | 26/40 hp
Torque 178/267 Nm | 131/197 ft-lbs
AUTOMATIC ROTARY TABLE
Table size 1600x1300 mm | 63.0x51.2 in
Positioning type 360,000 pos.
Max load in rotation 20 Ton | 44,093 lbs
LAYOUT DIMENSIONS
Total weight 34 Ton | 74,957 lbs
Foot print (WxL) 8690x6160 mm | 342.1x242.5 in
Total weight GDATC 44 Ton | 97,003 lbs
