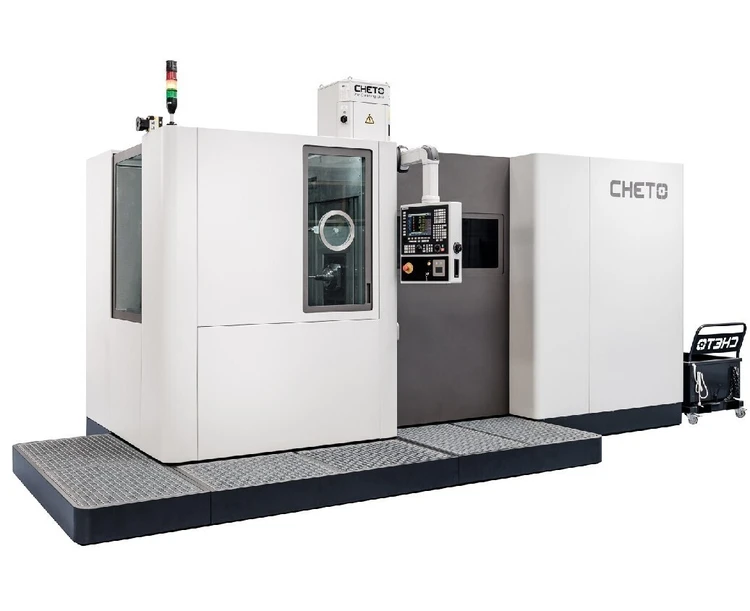

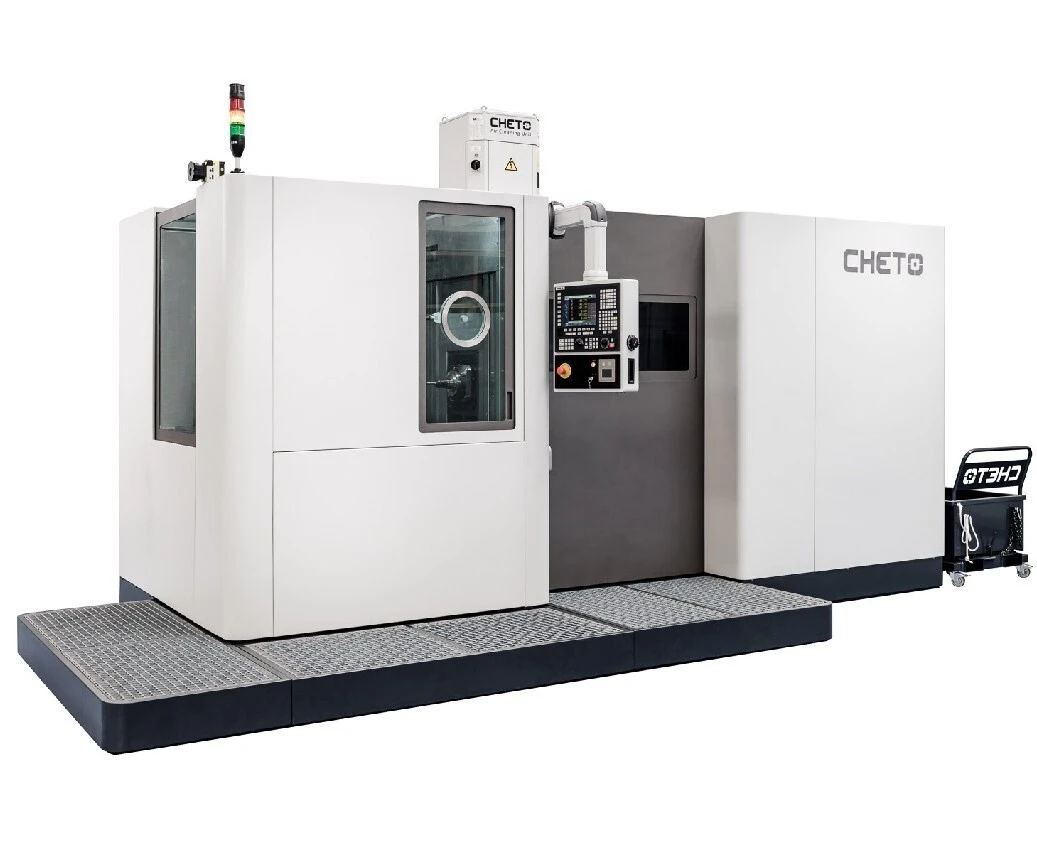

CHETO SiC 1000 HD Deep Hole Drilling and Milling
ConditionNew
New
The CHETO SIC Series of deep-hole drilling with milling machines can also be used for standard drilling, 3+2 milling (SiC650 | 1000) and 5-axis milling (SiC1000 HD). 6-axis machining flexibility makes the SIC Series truly an all-in-one solution. Absolute linear encoders in X, Y, and Z axes and absolute angular encoders in A and B axes deliver repeatable high-precision drilling and cutting.
CNC AXIS
X longitudinal travel 1200 mm | 47.2 in
Y vertical travel 1100 mm | 43.3 in
Z cross travel 700 mm | 27.6 in
W drilling one stroke 1400 mm | 55.1 in
B table rotation 360,000 pos.
A table tilting rotation+110º/-45º
DRILLING CAPACITY
Drilling Capacity ø3-32 mm | ø0.1-1.3 in
MILLING CAPACITY
Helical Threading Standard
Tapping M20 | 3/4"
Milling 450 cm3/min | 27.5 in3/min
SPINDLE
Speed 0-12.000 rpm
Spindle taper HSK-A100 / SK 50 BIG + / BTT 50
Power 45/49.5 kW | 60.3/66.4 hp
Torque 285/315 Nm | 210.2/232.3 ft-lbs
AUTOMATIC ROTARY TABLE
Table size ø800 mm | 31x31 in
Positioning type 360,000 pos.
Max load in rotation 1200 kg / 925 kg | 2646 lbs / 2039 lbs
LAYOUT DIMENSIONS
Total weight 20 Ton | 44,092 lbs
Foot print (WxL) 8216x4555 mm | 323.5x179.3 in
