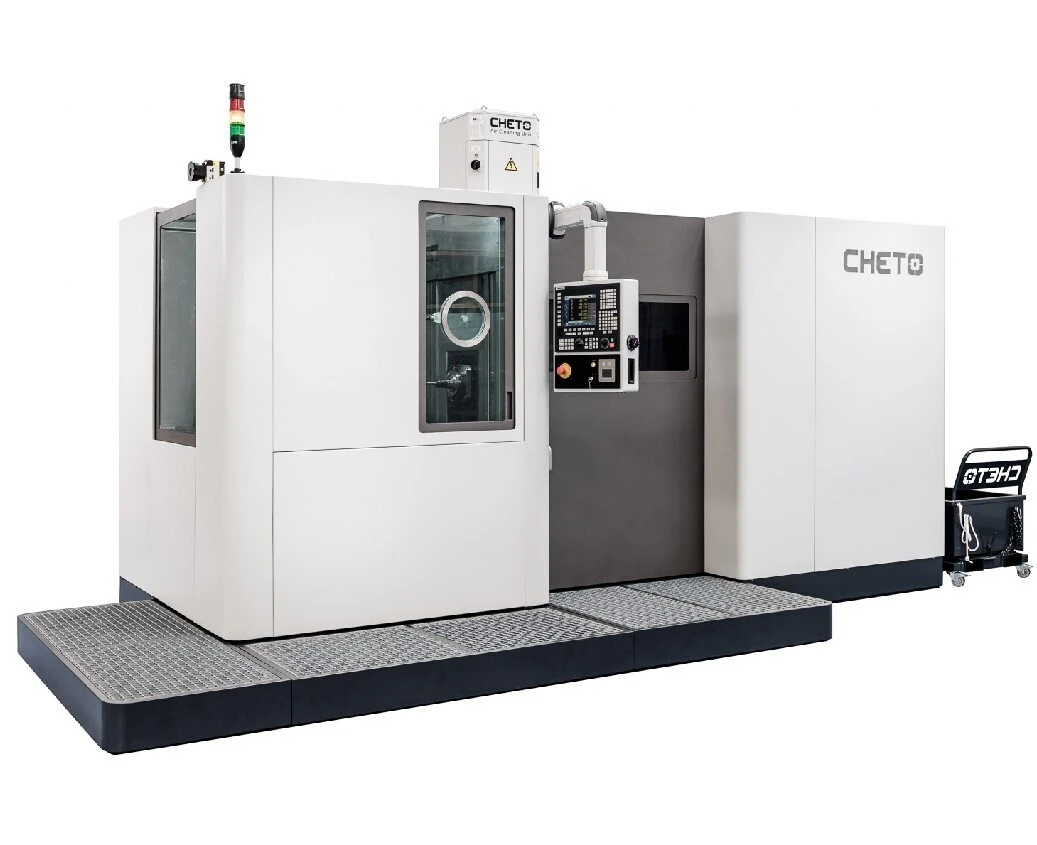

CHETO SiC 1000 Deep Hole Drilling and Milling
Have one to sell?
ConditionNew
0 available
New
The CHETO SIC Series of deep-hole drilling with milling machines can also be used for standard drilling, 3+2 milling (SiC650 | 1000) and 5-axis milling (SiC1000 HD). 6-axis machining flexibility makes the SIC Series truly an all-in-one solution. Absolute linear encoders in X, Y, and Z axes and absolute angular encoders in A and B axes deliver repeatable high-precision drilling and cutting.
CNC AXIS
X longitudinal travel 1000 mm | 39.4 in
Y vertical travel 840 mm | 33.1 in
Z cross travel 500 mm | 19.7 in
W drilling one stroke 1100 mm | 43.4 in
B table rotation 360,000 pos.
A table tilting rotation +90º/-45º
DRILLING CAPACITY
Drilling Capacity ø3-25 mm | ø0.1-1.0 in
MILLING CAPACITY
Helical Threading Standard
Tapping M16 | 3/8"
Milling 250 cm3/min | 15.3 in3/min
SPINDLE
Speed0-11.820 rpm
Spindle taper HSK-A63
Power 21/26 kW | 28/35 hp
Torque 80.2/101.7 Nm | 59/75 ft-lbs
AUTOMATIC ROTARY TABLE
Table size 500x500 mm | 20x20 in
Positioning type 360,000 pos.
Max load in rotation 750 kg / 600 kg | 1,653 lbs / 1,323 lbs
LAYOUT DIMENSIONS
Total weight 19 Ton | 42,560 lbs
Foot print (WxL) 6840x3300 mm | 267.3x129.9 in
