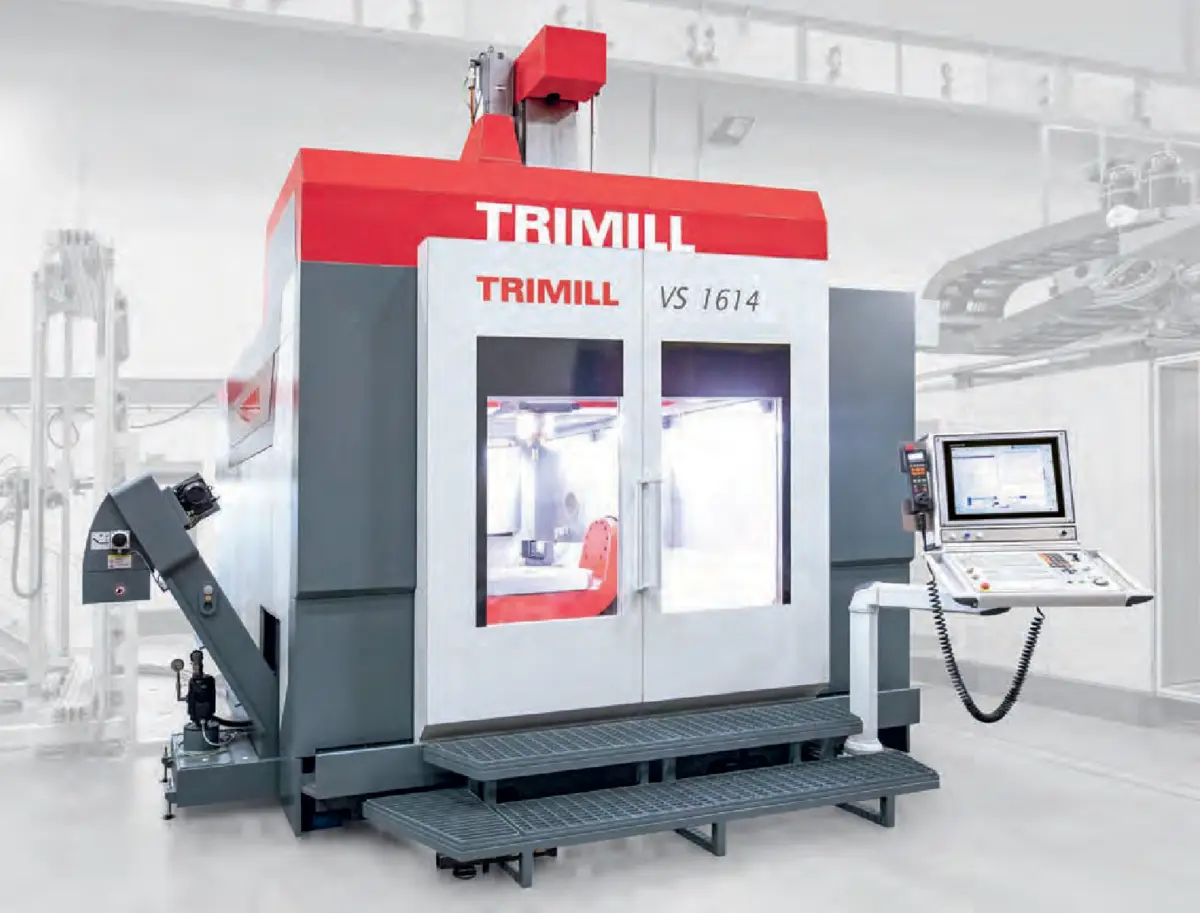

The VS Series uses a box-in-box design, which is a closed construction of the cross-beam and cross-slide (Y-axis), including the Z-axis RAM unit.
TRIMILL PRINCIPLE: BOX-IN-BOX and UHPC
The box-in-box is a unique system of closed construction of the cross-beam and cross-slide with internally positioned and guided ram unit (axes Y an Z). UHPC is a high strength concrete with excellent properties for vibration damping and thermal stability of machines.
THE ADVANTAGES OF TRIMILL PRINCIPLE:
• Consistent milling results thanks to stable thermo-symmetrical
arrangement on linear guideways
• Always 4 guides of the cross and vertical support for the machine, preventing the occurrence of the so-called „banana eff ect“
which deforms/bends the vertical support of the machine
• Increased rigidity of the machine in the X axis by +60%, in the Y axis by +30% and in the Z axis by +90%
ADVANTAGES OF USING UHPC:
• The columns and longbeams of most TRIMILL machines are made
of high-strength concrete (UHPC).
• Maximum vibration damping and extended tool life
• Low thermal conductivity and high heat capacity resulting in high thermal stability of the machines
• Compressive strength ≥ 150 Mpa => 6 times stronger than C20/25 concrete
• Production in our own concrete plant in TRIMILL, a.s.
TRIMILL uses UHPC with the most effective damping properties for all stationary machine components, which ultimately means better surface quality, higher precision and longer tool life.
Travels X, Y, Z
X-axis 1.600 mm
Y-axis 1.400 mm
Z-axis 800 mm
Spindle (S1/100%)
Spindle - option 1: 25 kW, 200 Nm, 12.000 1/min, HSK-A100
Spindle - option 2: 32 kW, 306 Nm, 14.000 1/min, HSK-A100
Spindle - option 3: 29 kW, 69 Nm, 24.000 1/min, HSK-A63
Tilting rotary table
Clamping surface ø 1.200 mm
Workpiece weight max 2.500 kg
Workpiece size max ø 1.415 mm
Workpiece height max 900 mm
Tilting speed B-axis 26 min-1
Rotation speed C-axis 50 min-1
Clamping torque B-axis +130°/-130°
Rotation range C-axis n × 360°
Clamping torque B-axis 10.000 Nm
Clamping torque C-axis 6.500 Nm
Feed rate
Feed rates X, Y, Z 30 m/min
Acceleration X, Y, Z 3 m/sec2
Technical data
Machine weight approx: 32.000 kg
Machine dimensions: cca 6.600 × 4.400 × 4.300 mm
