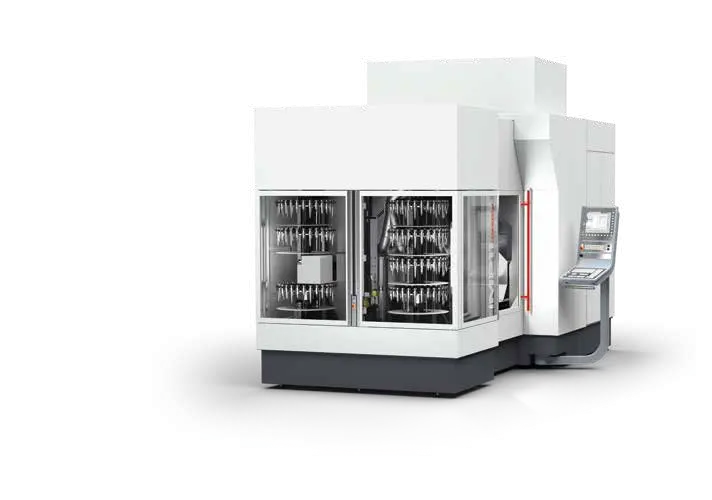

New EXERON HSC MP11/5 | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New
Large, economical, durable: The HSC MP11 rounds off the size of the HSC MP line upwards.
Various practical customer requirements were incorporated into the development of the machine: Precision, large machin- ing capacity, profitability, reliability and durability. In addition, the largest family member is characterised by numerous clever ideas. Combining all innovative improvements in a single system results in maximum precision and efficiency.
Travelling distances X x Y x Z 1,055 x 760 x 540 mm
Travelling distances B x C. B ±105° x C infinite
Workspace X x Y x Z 800 x 760 x 540 mm
Clamping table/faceplate 412 x 412 mm
Distance table/spindle nose 720 mm HSK-E40, 706 mm HSK-E50/HSK-F63
Workpiece weight max. 350 kg
Dimensions W x D x H 2,390 x 4,500 x 3,350 mm
Spindle speed 42,000 rpm HSK-E40, 36,000 rpm HSK-E50/HSK-F63
Spindle power S1/S6–40% 10 kW/13,5 kW HSK-E40,
- 24,8 kW/33 kW HSK-E50/HSK-F63
Tool magazine max. 210 HSK-E40, max. 189 HSK-E50, max. 154 HSK-F63
Rapid traverse X x Y x Z 80 m/min.
Rotation speed B/C 100/100 rpm
CNC control Heidenhain TNC 640
