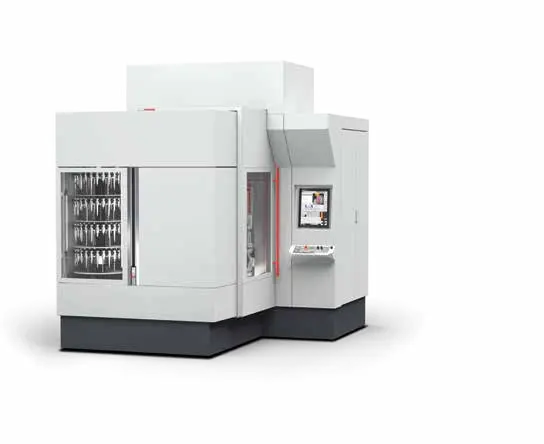

Flexible, precise, efficient: Our latest
family member, the HSC MP9, combines microprecision with the big ideas of an innovative series. The pioneering machine development is based on intensive dis- cussions with users – it is characterised by maximum precision, large machining vol- umes, efficiency, reliability and longevity.
Travelling distances X x Y x Z 955 x 625 x 400 mm
Travelling distances B x C Clamping table/faceplate
Workspace X x Y x Z 725 x 625 x 400 mm
Clamping table/faceplate Ø 412 mm
Distance table/spindle nose 600 mm HSK-E40, 586 mm HSK-E50
Workpiece weight max. 250 kg
Dimensions W x D x H 2,610 x 3,080 x 3,150 mm
Spindle speed 42,000 rpm HSK-E40, 36,000 rpm HSK-E50
Spindle power S1/S6–40% 10 kW/13,5 kW HSK-E40, 24,8 kW/33 kW HSK-E50
Tool magazine 30/60/90/120 HSK-E40, 27/54/81/108 HSK-E50
Rapid traverse X x Y x Z 60 m/min.
Rotation speed B/C 100/100 rpm
CNC control Heidenhain TNC 640
