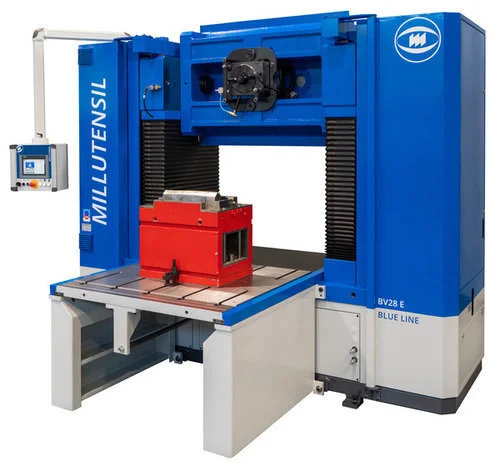

New MILLUTENSIL BV 28E | Die Tryout & Spotting Presses

Description

Advanced-version for small and medium size moulds.

BV 28 E is the advanced version with a hydraulic system controlled by electronic servo proportional valves and a control of parallelism through Heidenhain optical lines. The BV 28 E is equipped with user-friendly graphics control panel, monitored through Siemens PLC commanded by Touch Panel.
Platen dimensions are 1.200×1.000 mm (47X39 inches).
The max. clamping force is 500kN.
The max. load capacity on lower plate is 7.000 kg, while on the upper is 2.500 kg.
As all series, the BV 28 E series is offered with option -R, -G or -RG version and can also be equipped with all optional accessories.
