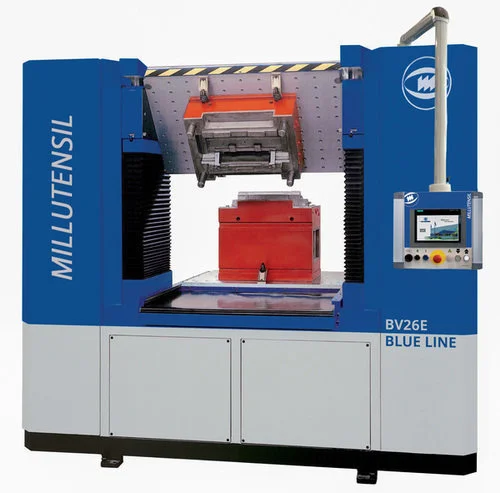

New MILLUTENSIL BV 26E | Die Tryout & Spotting Presses

Description

Entry level-version for small and medium size moulds.

BV 26 E is the advanced version with a hydraulic system controlled by electronic servo proportional valves and a control of parallelism through Heidenhain optical lines. BV 26 E is monitored through Siemens PLC commanded by Touch Panel.
Platen dimensions are 980×750 mm (38X29 inches).
The max. clamping force is 300kN.
The max. load capacity on lower plate is 4.000 kg, while on the upper is 1.200 kg.
Similar to the rest of the E, the BV 26 E series is offered with option -R, -G or -RG version and can also be equipped with all optional accessories.
