New MILLUTENSIL MIL 305 | Die Tryout & Spotting Presses
ConditionNew
New

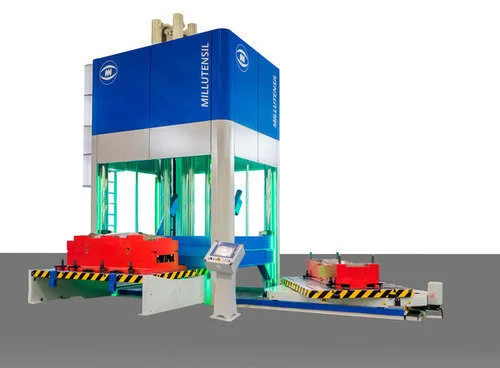

The MIL series version for large size moulds
The MIL 305 spotting press is available in the floor version and in the pit version. The max clamping force, 4.000 kN, can optionally be increased to 5.000 kN.
The press is equipped with user-friendly graphics control panel, monitored through Siemens PLC commanded by Touch Panel installed in a pulpit station.
Platen dimensions are 3.000×2.400 mm (118×84 inches).
The MIL 305 model is offered in both floor and pit version. It can also be equipped with all optional accessories except the energy accumulator, the wax injection unit.
Max. clamping force 4.000 / 5.000 kN
Max. opening force 900 kN
Max. load capacity on lower plate 75.000 kg
Max. load capacity on upper plate 30.000 kg
