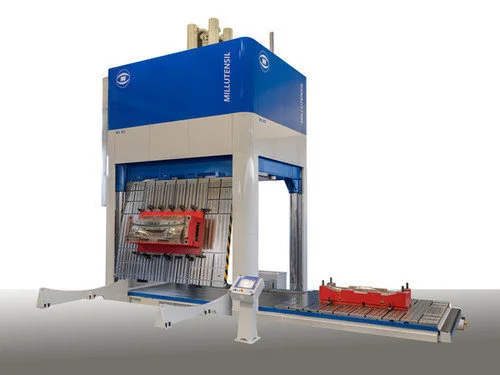

New MILLUTENSIL MIL 302 | Die Tryout & Spotting Presses
ConditionNew
New
The MIL series version for large size moulds
The press is produced in three models, MIL 302 – MIL 303 – MIL 304, which differ in performance. They are both available in the floor version and in the pit version.
All models are equipped with user-friendly graphics control panel, monitored through Siemens PLC commanded by Touch Panel installed in a pulpit station.
Platen dimensions are 3.000×2.000 mm (118×78 inches).
The MIL 302 – MIL 303 and MIL 304 models are offered in both floor and pit version. They can also be equipped with all optional accessories except the energy accumulator, the wax injection unit.
Max. clamping force 2.500 kN
Max. opening force 700 kN
Max. load capacity on lower plate 70.000 kg
Max. load capacity on upper plate 25.000 kg
