New DYNAPATH DMC-845L | Vertical Machining Centers
Have one to sell?
ConditionNew
1 available
New

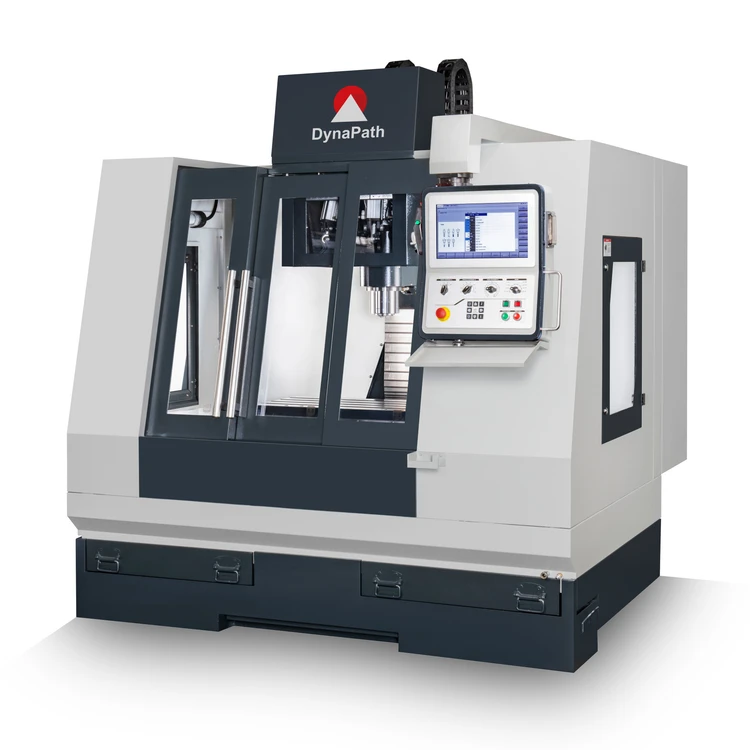

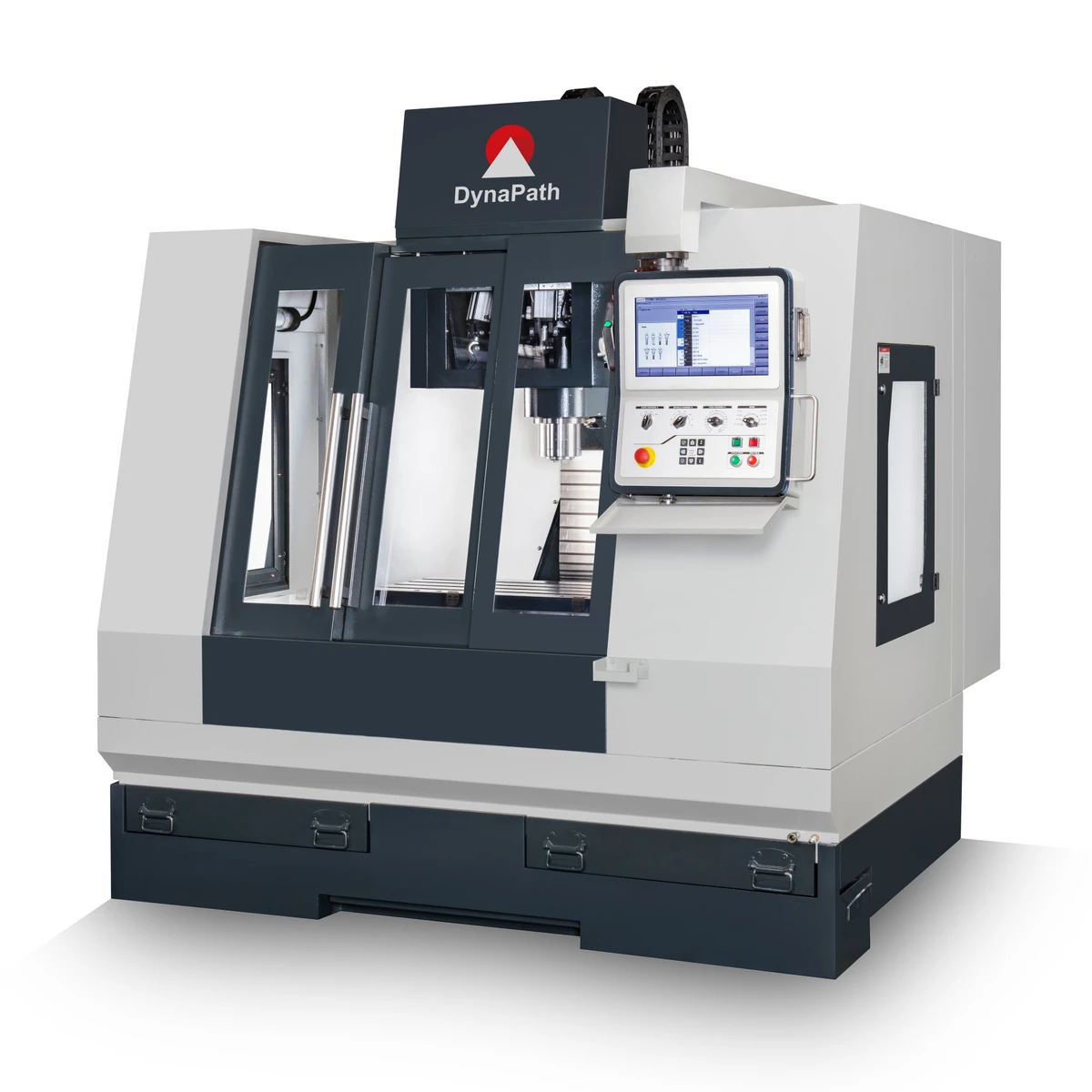

DynaPath DMC mill centers feature an unique eight-station tool changer that enables batch production using standard 40-taper tooling. The X, Y, and Z axes ways use roller-type linear rails that offer a balance of high rigidity and speed, allowing a rapid speed of 20 m/min (780 IPM). The 8000 RPM belt-driven spindle is dual wound, offering improved torque characteristics in the low winding when operating at under 1800 RPM. For the operator, the versatile WinDelta control allows manual DRO, semi-automatic, and also fully automatic operation of the machine by running standard G-Code. Furthermore, Conversational Programming and DXF CAD capabilities enable the operator to program right at the machine.
MODEL DMC-845L
TYPE Mill Center
TRAVEL XYZ 800 x 400 x 500 mm
(31.4" x 15.7" x 19.6")
AXES TYPE X/Y/Z Linear Roller / Linear Roller / Linear Roller
SPINDLE NOSE TO TABLE 110 - 535 mm (4.3-21.0")
TOOL TO COLUMN 435 mm (17.1")
MOTORS X/Y/Z 0.85 / 0.85 / 1.35 kW Direct Drive
SPINDLE TAPER BT40 / CAT40
SPINDLE DIAMETER 127 mm (5.0")
SPINDLE RPM 50-8000 RPM
SPINDLE MOTOR 5.5 kW (7 HP) Belt Drive
SPINDLE RATED TORQUE 36 N-m (26.55 ft-lb")
TOOL CHANGER 8-Station Independent Arm
MAX TOOL SPEC Ø63 mm (Ø2.4") / 5 kg (11.0 lbs)
MAX RAPID SPEED X/Y/Z 20 m/min (787 IPM)
POSITIONING ACCURACY 12 um (0.000472")
REPEAT ACCURACY 6 um (0.000236")
TABLE SIZE 850 x 420 mm
(33.5" x 16.5")
TABLE SLOTS x OFFSET x WIDTH 4 x 85 mm x 18 mm
(4 x 3"11/32 x 45/64)
MAX TABLE LOAD 200 kgs (440 lbs)
MACHINE WEIGHT 3800 kg (8360 lbs)
SHIPPING L x W x H 2200 x 2000 x 2310 mm
(87" x 79" x 91")
MACHINE L x W x H 2200 x 2200 x 2310 mm
(87" x 87" x 91")
COOLANT CAPACITY 200 L (50 gal)
AIR REQUIREMENTS 6 kg/cm2 (90 psi)
POWER REQUIREMENTS 15 kVA, 3 Phase, 220V
Automatic 4 Way Tool Changer
CNC Rigid Tapping
C3 Class Precision Ball Screws
Auto Lubrication System
Full Enclosure
Flood Coolant System & Chip Recovery Tray
LED Work Light
Tri color Light Post
Tools and Toolbox
One Year Warranty on All Parts
OPTIONS:
Optional Spindle Probe and Automatic Tool Setter allow fast and accurate part setup.
MPG RUN feature allows easing into a part program by synchronizing machine feed motion with the turning of the electronic MPG handwheel.
Program RETRACE feature allows starting the part program at any specified block.
