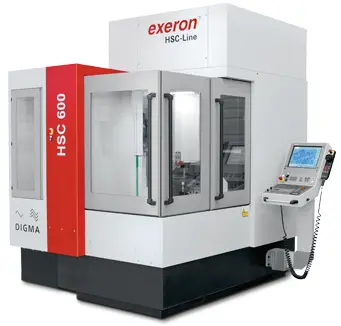

EXERON HSC 600/5 - 5 Axis Vertical Machining Center
Have one to sell?
ConditionNew
New
Explore the precision of the new EXERON HSC 600/5 a 5 Axis Vertical Machining Center with a robust 17.4 hp, 42,000 RPM, and XYZ travel of 25.59", 21.65", and 15.75". Advanced engineering for demanding tasks.
Travelling distances X x Y x Z 650 x 550 x 400 mm
Travelling distances B x C B ±100° x C infinite
Clamping table/faceplate Ø 410 mm
Distance table/spindle nose 600 mm HSK-E40 586 mm HSK-E50
Workpiece weight max. 200 kg
Dimensions W x D x H 2,200 x 2,400 x 2,900 mm
Spindle speed 42,000 rpm
Spindle power S1/S6–40% 10/13,5 kW HSK-E40 24,8/33 kW HSK-E50
Tool magazine 30/60/90 HSK-E40 27/54/81 HSK-E50
Rapid traverse X x Y x Z 50 m/min.
Rotation speed B/C 80/80 rpm
CNC control Heidenhain TNC 640
