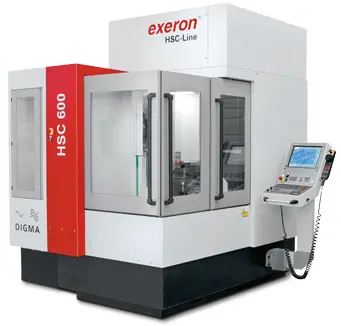

New EXERON HSC 600/3 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Space-saving, dynamic, universal:
The HSC 600 is a powerful high-end machining solution for universal 5-axis use in tool and mould making. The extremely small footprint of this high-end machine also makes it ideal for use in locations where space is limited.
Travelling distances X x Y x Z 585 x 550 x 400 mm
Clamping table/faceplate 530 x 900 mm
Distance table/spindle nose 600 mm HSK-E40 586 mm HSK-E50
Workpiece weight max. 600 kg
Dimensions W x D x H 2,200 x 2,400 x 2,900 mm
Spindle speed 42,000 rpm
Spindle power S1/S6–40% 10/13,5 kW HSK-E40 24,8/33 kW HSK-E50
Tool magazine 30/60/90 HSK-E40 27/54/81 HSK-E50
Rapid traverse X x Y x Z 50 m/min.
CNC control Heidenhain TNC 640
