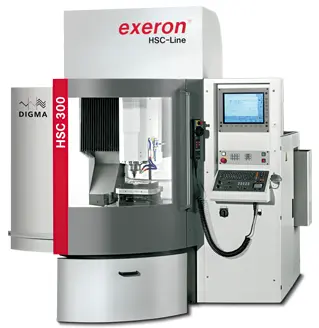

New EXERON HSC 300/3 | Vertical Machining Centers

Have one to sell?
414-509-5107
support@direcmachinetool.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
EXERON
Model:
HSC 300/3
Condition:
Build To Order
Status:
For Sale

Description

Compact, high-precision and versatile: The HSC 300 is a genuine all-rounder and a guarantor of exceptional performance. Optimal results in graphite and hard ma- chining – in a particularly small space with manageable investment costs.

X18.9"480.06 mm
Y13.39"340.11 mm
Z13.98"355.09 mm
Power17.4 hp13 kW
RPM42,000 RPM42,000 RPM
TaperHSK-E40HSK-E40
Table-W15.75"400.05 mm
Table-L18.5"469.9 mm
# Axis33
ControlCNC (HEIDENHAIN TNC 640)CNC (HEIDENHAIN TNC 640)
Dimensions2,000W x 2,350D x 2,450H mm2,000W x 2,350D x 2,450H mm

Travelling distances X x Y x Z 550 x 340 x 355 mm
Clamping table/faceplate 470 x 400 mm
Distance table/spindle nose 495 mm
Workpiece weight max. 500 kg
Total dimensions (W x D x H) 2,000 x 2,350 x 2,450 mm
Spindle speed 42,000 rpm
Spindle power S1/S6 – 40% 10/13,5 kW
Tool magazine 16/40 HSK-E40
Rapid traverse X x Y x Z 30 m/min.
CNC control Heidenhain TNC 640
