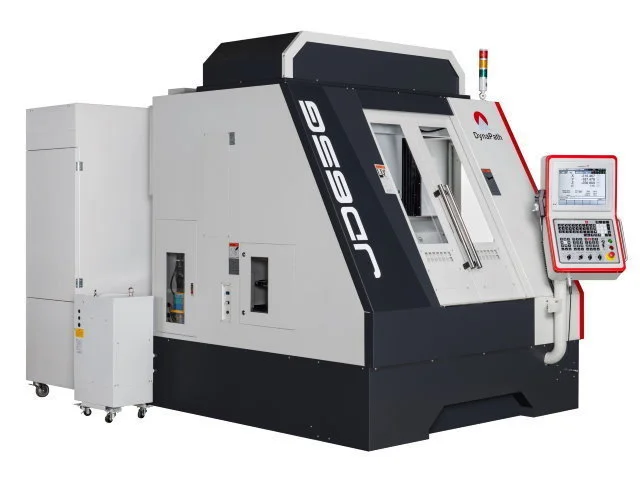

DYNAPATH HSM-650S High Speed Mill
ConditionNew
New
DynaPath High Speed Mills excel in high speed machining with fine tools, quality surface finish for electrode or mold making, and high-precision milling for small parts manufacturing. The standard 24,000 RPM spindle features a BT-30 taper and comes with air purge. The maximum rapid speed is 15 m/min (590 ipm) while the maximum cutting feed is up to 10 m/min (400 ipm).
MODEL HSM-650S
TYPE High Speed Mill with Linear Scale Option
SPINDLE TYPE Built-In Spindle with positive air purge
SPINDLE TAPER HSK40E
SPINDLE RPM 24000 RPM
SPINDLE MOTOR 7.5 kW (10 HP)
SPINDLE TORQUE 6.1 Nm
COOLING SYSTEM Oil-Air
TRAVEL X 600 mm (23.62")
TRAVEL Y 500 mm (19.68")
TRAVEL Z 270 mm (10.62")
SPINDLE NOSE TO TABLE
(5.91" - 17.71")
(5.91" - 17.71")
ATC TYPE Carousel
TOOL CHANGER 12 Tools
MAX TOOL DIAMETER 50 mm (1.96")
MAX TOOL LENGTH 200 mm (7.87")
MAX TOOL WEIGHT 3 kg (6.6 lbs)
TABLE SIZE
(27.56" - 19.68")
(27.56" - 19.68")
TABLE SLOTS x OFFSET x WIDTH 5 x 100 (3.94") x 14 mm (0.56")
MAX TABLE LOAD 350 kg (770 lbs)
MAX RAPID SPEED 15 m/min (591 IPM)
MAX CUTTING FEED 10 m/min (394 IPM)
AXIS TYPE X/Y/Z Linear/Linear/Linear
MOTOR POWER (X/Y/Z) 1.3 x 1.3 x 2.0 kW (Z-axis with brake)
POSITIONING ACCURACY 0.008 mm (0.000315")
REPEAT ACCURACY 0.004 mm (0.000158")
POWER REQUIREMENTS 13 kVA, 3-Phase, 220 V, 50 A
MACHINE WEIGHT 3800 kg (8360 lbs)
FLOOR SPACE LxWxH
(104" x 119" x 97")
(95" x 111" x 87")
OPTIONS * CE Conformance (for CE required regions)
* 30,000 RPM Spindle, HSK40E, Embedded Type
* 24 Tool Carousel Type ATC
* Linear Scale Encoders
Electrical Cabinet Heat Exchanger
24,000 RPM Spindle, HSK40E, Embedded Type
12 Tool Carousel Type ATC
Spindle Chiller Unit
Coolant Pump
Work Light
Tri-Color Light Post
Auto-Lubrication System
Coolant and Chip Recovery System
One Year Warranty on all Parts
OPTIONS:
Tool Setter for Length Measurement
Tool Length, Diameter Measurement System
Spindle Probe System
DynaPath High Speed Mills excel in high speed machining with fine tools, quality surface finish for electrode or mold making, and high-precision milling for small parts manufacturing. The standard 24,000 RPM spindle features a BT-30 taper and comes with air purge. The maximum rapid speed is 15 m/min (590 ipm) while the maximum cutting feed is up to 10 m/min (400 ipm).
Imperial
| X | 23.62" |
| Y | 19.68" |
| Z | 10.62" |
| Power | 10 hp |
| RPM | 24,000 RPM |
| # ATC | 12 |
| Taper | HSK40E |
| Table-W | 23.62" |
| Table-L | 19.69" |
| # Axis | 3 |
| Dimensions | 95" X 111" X 87" |
| Weight | 8360 |
MODEL HSM-650S
TYPE High Speed Mill with Linear Scale Option
SPINDLE TYPE Built-In Spindle with positive air purge
SPINDLE TAPER HSK40E
SPINDLE RPM 24000 RPM
SPINDLE MOTOR 7.5 kW (10 HP)
SPINDLE TORQUE 6.1 Nm
COOLING SYSTEM Oil-Air
TRAVEL X 600 mm (23.62")
TRAVEL Y 500 mm (19.68")
TRAVEL Z 270 mm (10.62")
SPINDLE NOSE TO TABLE
(5.91" - 17.71")
(5.91" - 17.71")
ATC TYPE Carousel
TOOL CHANGER 12 Tools
MAX TOOL DIAMETER 50 mm (1.96")
MAX TOOL LENGTH 200 mm (7.87")
MAX TOOL WEIGHT 3 kg (6.6 lbs)
TABLE SIZE
(27.56" - 19.68")
(27.56" - 19.68")
TABLE SLOTS x OFFSET x WIDTH 5 x 100 (3.94") x 14 mm (0.56")
MAX TABLE LOAD 350 kg (770 lbs)
MAX RAPID SPEED 15 m/min (591 IPM)
MAX CUTTING FEED 10 m/min (394 IPM)
AXIS TYPE X/Y/Z Linear/Linear/Linear
MOTOR POWER (X/Y/Z) 1.3 x 1.3 x 2.0 kW (Z-axis with brake)
POSITIONING ACCURACY 0.008 mm (0.000315")
REPEAT ACCURACY 0.004 mm (0.000158")
POWER REQUIREMENTS 13 kVA, 3-Phase, 220 V, 50 A
MACHINE WEIGHT 3800 kg (8360 lbs)
FLOOR SPACE LxWxH
(104" x 119" x 97")
(95" x 111" x 87")
OPTIONS * CE Conformance (for CE required regions)
* 30,000 RPM Spindle, HSK40E, Embedded Type
* 24 Tool Carousel Type ATC
* Linear Scale Encoders
Electrical Cabinet Heat Exchanger
24,000 RPM Spindle, HSK40E, Embedded Type
12 Tool Carousel Type ATC
Spindle Chiller Unit
Coolant Pump
Work Light
Tri-Color Light Post
Auto-Lubrication System
Coolant and Chip Recovery System
One Year Warranty on all Parts
OPTIONS:
Tool Setter for Length Measurement
Tool Length, Diameter Measurement System
Spindle Probe System
