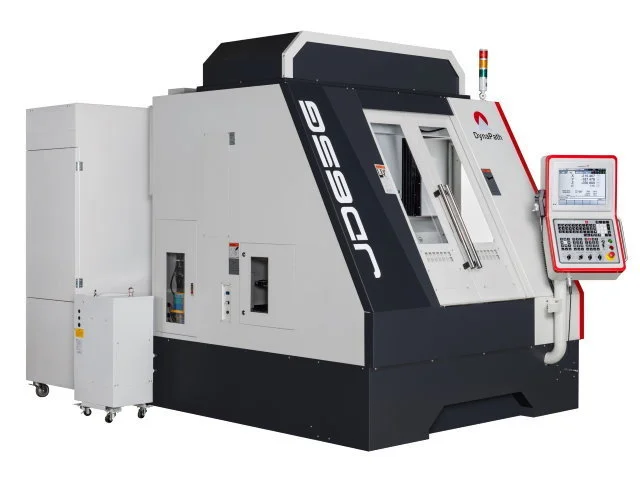

DYNAPATH HSM-650G Graphite Milling Center

MODEL HSM-650G
TYPE Graphite Milling Center
SPINDEL TYPE Built-In Spindle with positive air purge
SPINDLE TAPER HSK40E
SPINDLE RPM 24000 RPM
SPINDLE MOTOR 8.2 kW (10 HP)
SPINDLE TORQUE 6 Nm
LUBRICATION TYPE Oil Mist Based
TRAVEL X 600 mm
TRAVEL Y 500 mm
TRAVEL Z 270 mm
FLOOR TO TABLE DISTANCE 720 mm
SPINDLE NOSE TO TABLE 130 - 400 mm
ATC TYPE Carousel
TOOL CHANGER 12 Tools
MAX TOOL DIAMETER 16 mm
MAX TOOL LENGTH 200 mm
MAX TOOL WEIGHT 3 kgs
TABLE SIZE 600 x 500 mm
TABLE SLOTS 5
TABLE SLOT OFFSET 100 mm
TABLE SLOT WIDTH 16 mm
MAX TABLE LOAD 350 kgs
MAX RAPID SPEED 15 m/min
MAX CUTTING FEED 10 m/min
AXIS X TYPE Linear
AXIS Y TYPE Linear
AXIS Z TYPE Linear
MOTOR POWER (X/Y/Z) 1.3 x 1.3 x 1.8 kW (Z-axis with brake)
MOTOR TORQUE (X/Y/Z) 8.34 / 8.34 / 11.5 Nm
POSITIONING ACCURACY ISO230-2 0.008 mm (0.00032")
REPEAT ACCURACY ISO230-2 0.004 mm (0.00016")
DUST COLLECTOR POWER 3 HP
FLOW CAPACITY 55cmm (1938 CFM)
COLLECTION BIN 120 L
FILTER METHOD Air compression
FILTER CORE L-PET, Static Free, 0.5 microns
EMISSION CONCENTRATION <0.2 mg/m3
NOISE LEVEL Maximum 75 dB at 1 meter
AIR PRESSURE REQ 6 kgf/cm2
POWER 20 kVA, 3 Phase
MACHINE WEIGHT 3200 kgs
MACHINE LxWxH 2300 x 2000 x 2300 mm
FLOOR SPACE WITH FILTRATION UNIT (L x W x H) 3400 x 3100 x 2300 mm

OPTIONS:
30,000 RPM Spindle, HSK40E, Embedded Type
24 Tool Carousel Type ATC
Tool Setter for Length Measurement
Tool Length, Diameter Measurement System
Spindle Probe System
