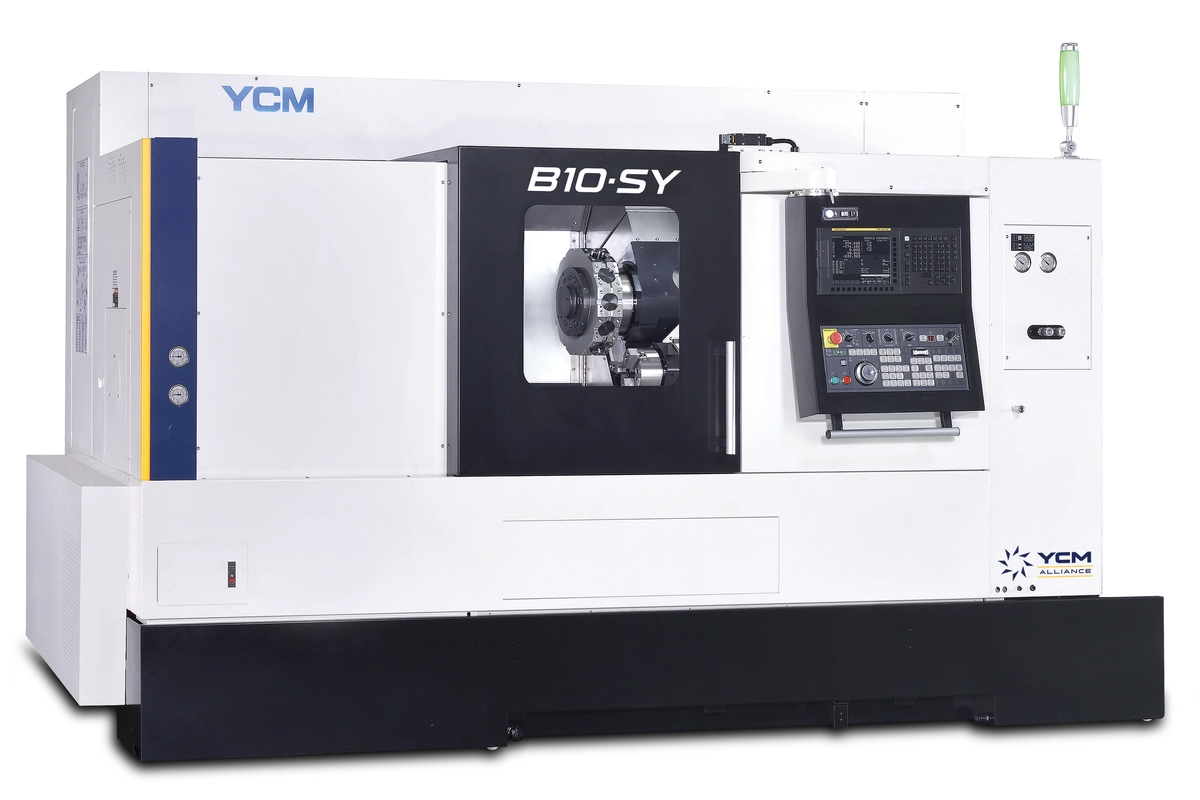

The B Series turning centers include a one-piece Meehanite® base casting, with box way construction designed for rigidity and vibration dampening. Multiple configurations available, from 2-axis to multi-axis turning, static to live tool turrets, programmable tailstock to sub spindle making the B Series an excellent choice for middle to upper range components.
Robust One-Piece Base Structure
One-piece 30° slant bed design made from high quality Meehanite®
cast-iron. Turcite-B on X/Z-axis provides superior rigidity, low friction
coefficient, reduced vibration, and superior damping characteristics
without stick-slip, while still maintaining machining accuracy.
Spindle Benefits
This turning center is equipped with up to 46.9 hp (35 kW) in-house
built spindle with rotation of up to 3,500 rpm It includes a 10” chuck,
ø3.07” (ø78 mm) hole through draw tube and expanded travel of Z-axis
that means a spacious working area is provided for large workpiece
up to ø13.77” x 28.70” (ø350*729 mm).
Integrated Sub Spindle and Y-axis for Complete Part Machining
The wedge type Y-axis design maintains machining accuracy during
complex off center milling, drilling and tapping in a single setup.
6” sub spindle with up to 14.75 hp (11 kW) motor can generate rotation
speed up to 6,000 rpm. The combination of sub spindle, Y-axis, C-axis
and live tool turret allow the complete machining of complex parts
in a single setup improving efficiency and accuracy due to less part
handling. The sub spindle incorporates a rotary encoder, ensuring
high resolution positioning and repeatability for done-in-one part
machining processes.
BMT65 Turret with Live Tooling
The BMT65 turret ensures a fast and stable rotation of up to 4,500 rpm
and outputs 7.4 hp (5.5 kW). The 12-station servo-driven turret provides
high reliability and reduces tool change time. Next tool index is 0.95 sec.
and 180° index is 2.05 sec.
Swing Over Bed ø39.37” (ø1,000 mm)
Std. Turning Diameter (Max.) ø10.0” (ø13.77”) 250 mm (ø350 mm)
Max. Turning Length 28.70” (729 mm)
Spindle Speed – Main / Sub 3,500 rpm / 6,000 rpm
Max. Spindle Motor Power –
Main / Sub 46.9 hp (35 kW) / 14.75 hp (11 kW)
Max. Spindle Torque – Main / Sub 24.8 / 68 lb-ft (440.3 / 92.2 Nm)
Chuck Size – Main / Sub 10” / 6”
Through Draw Tube ø3.07”/ ø1.77” (ø78 / ø45 mm )
X-Axis Travel 10.23” (260 mm)
Y-Axis Travel +1.97” / -1.97” (+50 / -50 mm)
Z-Axis Travel 30.70” (780 mm)
B-Axis Travel 29.92” (760 mm)
Rapid Feedrate (X / Z / Y / B) 787 / 945 / 394 / 787 ipm
(20 /24 / 10 / 20 m/min)
Cutting Feedrate (X / Z / Y / B) 0.04~394 ipm (1~10,000 mm/min)
Tool Standard BMT65
Tool Capacity 12T
Shank Height for Square Tool 1.0” ( 25 mm)
Shank Diameter for Boring Bar ø1.57” (ø40 mm)
Live Tooling 100–4,500 rpm
Positioning w/o scales X / Y / Z / B .00031” (.008 mm)
Repeatability w/o scales X / Y / Z / B .00019” (.005 mm)
Tank Capacity 111 gal (420 L)
Machine Weight (w/Chip Conveyor) 16,645 lb (7,550 kg)
STANDARD FEATURES
• Pedal – Main & Sub Spindle
• Oil Skimmer
• ATLM- Main Spindle
• Bar feed Interface
• (2) Axial Live Tool Holders
• (2) Radial Live Tool Holders
• Heavy Duty Coolant Pump
• Hinge Type Chip Conveyor - Right Side
• Safety Door
• Hard and Soft Jaws (1-set)
• Cutting Air Blast
• Air Gun
• Interior Work Light
• 3-Color Status light
• Oil Cooling System
• Interlocking Door Safety Switch
• Central Auto-Oil Lubrication System
• Full Chip Enclosure
• Leveling Blocks and Bolts
• Heat Exchanger for Electrical Cabinet
• Mechanical, Electrical & Operating Manuals (CD)
• Tool Kit
