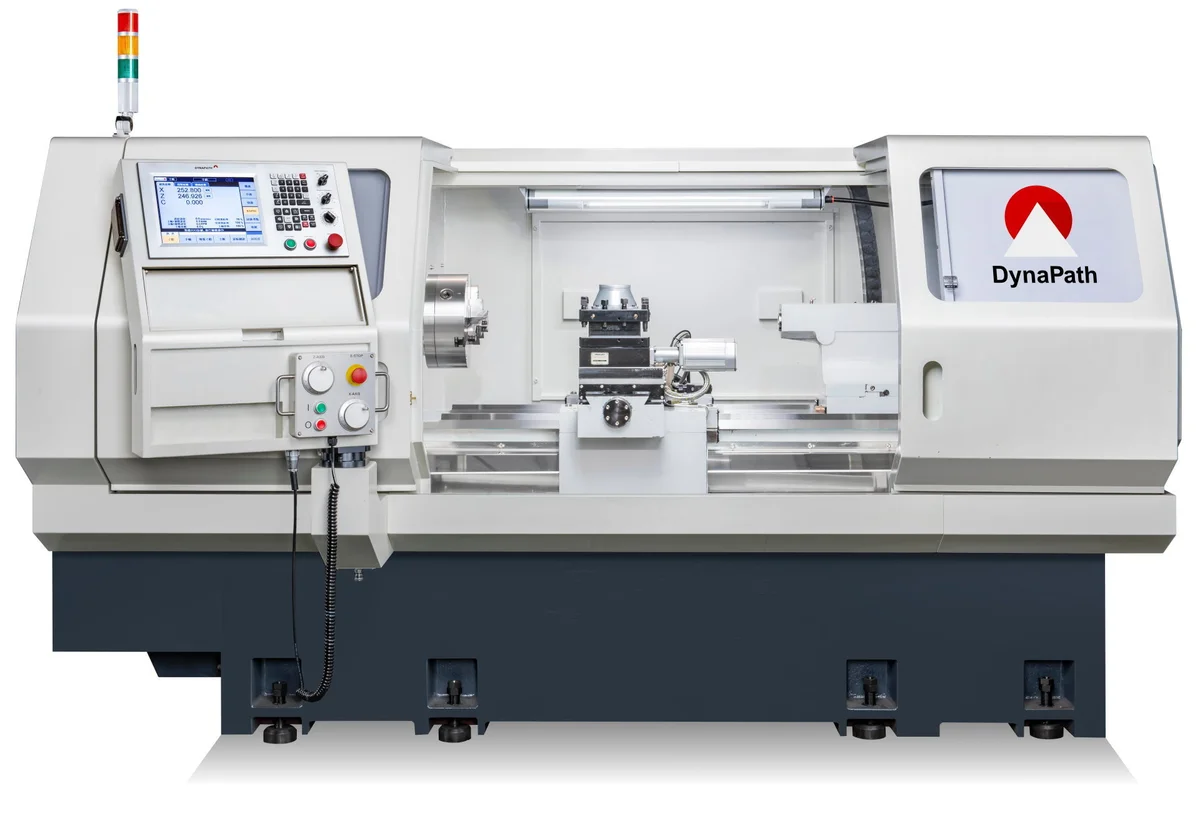

TF-Series Flat Bed Lathes
2+1 Axis Box Way Flat Bed Lathe for Job Shops, Tool Rooms, and Prototyping

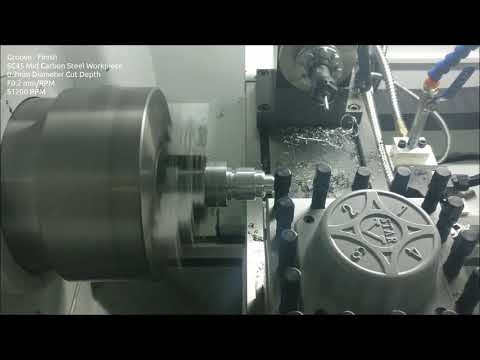

The TF series flat bed type lathe machines are designed for versatility. The X and Z axes utilize precision ground box ways with precision ball screws. The spindle motor is housed in a rigid casing fixed to the frame for enhanced rigidity. A tailstock with quill allows set up for long cylindrical parts. An optional X-Axis secondary spindle offers mill-turn functionality. The machine is suitable for turning, grooving, drilling, facing, threading, tapping, keyway milling, face milling, and cylindrical milling of precision parts.
Standard features:
Dual Electronic Handwheel Station
Automatic 4 Way Tool Post
Air Driven Hydraulic Spindle Disc Brake
Auto Lubrication System
Manual 8" Chuck (TF-410), 10" Chuck (TF-480)
Manual Tailstock with Quill
Semi-Auto/Teach-in/Learning Mode
Work Light
Tri-Color Light Post
Spindle C-Axis Mode
Interlocked Chuck and Main Safety Guards
SWING OVER BED 550 mm (21.65")
SWING OVER CROSS SLIDE 265 mm (10.43")
DISTANCE BETWEEN CENTERS 1250 mm (49.21")
WIDTH OF BED 380 mm (14.96")
TRAVEL X 250 mm (9.84")
TRAVEL Z 1000 mm (39.37")
SPINDLE SPEED 10 - 3500 RPM
SPINDLE TAPER / BORE / NOSE MT6 / Φ79 mm (3.110") / A2-6
SPINDLE MOTOR RATING 7.5 kW (10 HP)
SUB-SPINDLE SPEED 10 - 4000 RPM
SUB-SPINDLE MOTOR RATING 1.0 kW 3.18 N-m (2.35 ft-lb)
CHUCK TYPE Manual 10", 3-Jaw
RAPID X/Z 5 / 5 m/min (197 / 197 IPM)
TORQUE X/Z 9 / 12 N-m (6.64 / 8.85 ft-lb)
ATC TYPE 4-Tool Turret 25mm
ATC DRIVE Electric
TAILSTOCK QUILL SIZE Φ52 mm (2.76") / MT4
TAILSTOCK QUILL TRAVEL 140 mm (5.51")
TAILSTOCK DRIVE Manual
REPEAT ACCURACY X/Z 0.005 / 0.006 mm (0.00020" / 0.00024")
POSITION ACCURACY X/Z 0.010 mm/0.016 mm (0.00039" / 0.00063")
TURNING ACCURACY 0.003 mm (0.00012")
TURNING UNIFORMITY 0.006 mm/100 mm (0.00024" / 3.94")
DIMENSIONS LxWxH 300 x 175 x 165 cm (119" x 69" x 65")
FLOOR SPACE LxWxH 400 x 315 x 195 cm (158" x 125" x 77")
TOTAL WEIGHT 2200 kg (4840 lbs)
AIR REQUIREMENTS 6 kgf/cm2 (85 PSI), 0.03 m3/min (1 CFM)
POWER REQUIREMENTS 3 Phase, 220 V, 50 A, 15 KVA
