Dynapath VK-3T Vertical Knee Mill
Have one to sell?
ConditionNew
New
Efficient and compact machines suitable for Job Shops, Tool Rooms, Design Prototyping, and small lot Production Operations.

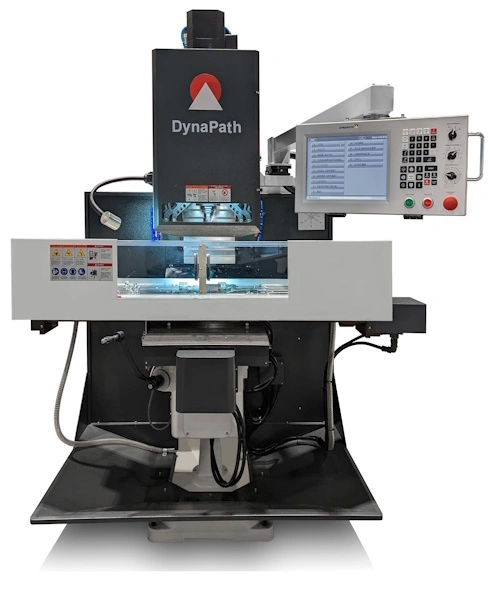

DynaPath VKT mills features an unique four-station tool changer that enables batch production using standard 40-taper tooling. In addition, the fully direct-driven X, Y, Z, and spindle axes offer enhanced rigidity and performance. For the operator, the versatile WinDelta control allows manual DRO, semi-automatic, and also fully automatic operation of the machine by running standard G-Code. Furthermore, Conversational Programming and DXF CAD capabilities enable the operator to program right at the machine.
MODEL VK-3T
TYPE Knee Mill + ATC
TRAVEL XYZ 700 x 310 x 270 mm (27.5" x 12.2" x 10.6")
KNEE TRAVEL (Z) 350 mm (13.7")
SPINDLE NOSE TO TABLE 100-400 mm (3.9-15.7")
TOOL TO COLUMN 360 mm (14.2")
AXIS TYPE X/Y/Z Dove / Dove / Linear
MOTORS X/Y/Z 0.85 / 0.85 / 0.85 kW Direct Drive
SPINDLE TAPER BT40 / CAT40
SPINDLE DIAMETER 120 mm (4.7")
SPINDLE RPM 50-6000 RPM
SPINDLE MOTOR 5 HP (3.75kW) Direct Drive
SPINDLE RATED TORQUE 24 N-m (17.70 ft-lb")
TOOL CHANGER 4 Stations
MAX RAPID SPEED X/Y/Z 6000 mm/min (236 IPM)
POSITIONING ACCURACY 20 um (0.000787")
REPEAT ACCURACY 10 um (0.000394")
TABLE SIZE 1270 x 250 mm (50.0" x 9.8")
TABLE SLOTS x OFFSET x WIDTH 3 x 65 mm x 16 mm (3 x 2"9/16 x 5/8)
MAX TABLE LOAD 220 kgs (484 lbs)
MACHINE WEIGHT 1600 kg (3520 lbs)
SHIPPING L x W x H 1800 x 1600 x 2300 mm (71" x 63" x 91")
MACHINE L x W x H 2400 x 1600 x 2650 mm (95" x 63" x 105")
COOLANT CAPACITY 40 L (10 gal)
AIR REQUIREMENTS 6 kg/cm2 (90 psi)
POWER REQUIREMENTS 8 kVA, 3 Phase, 220V
Standard Features:
CNC Rigid Tapping
X, Y, Z Precision Ball Screws
Manual Table Height Crank
Auto Lubrication System
Air/Flood Coolant System
Table Top Enclosure
Splash Guard
Coolant Drip Pan
Way Covers
LED Work Light
Power Tool Clamp Draw Bar
Tools and Tool Box
Options:
8000 RPM BT/CAT 40 Spindle with Dual Winding
4th Axis Rotary Table
