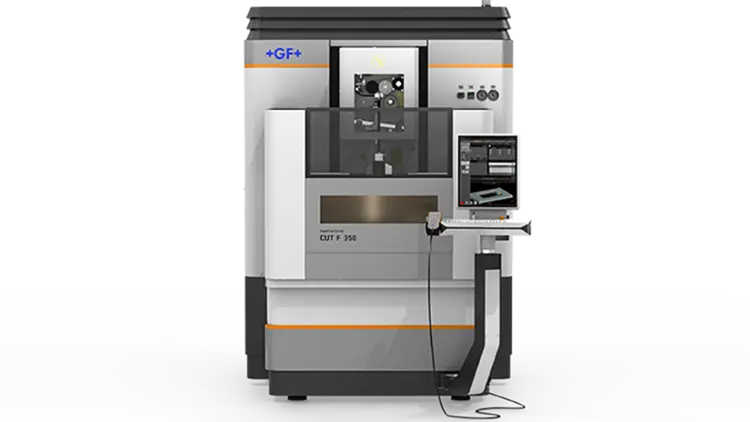

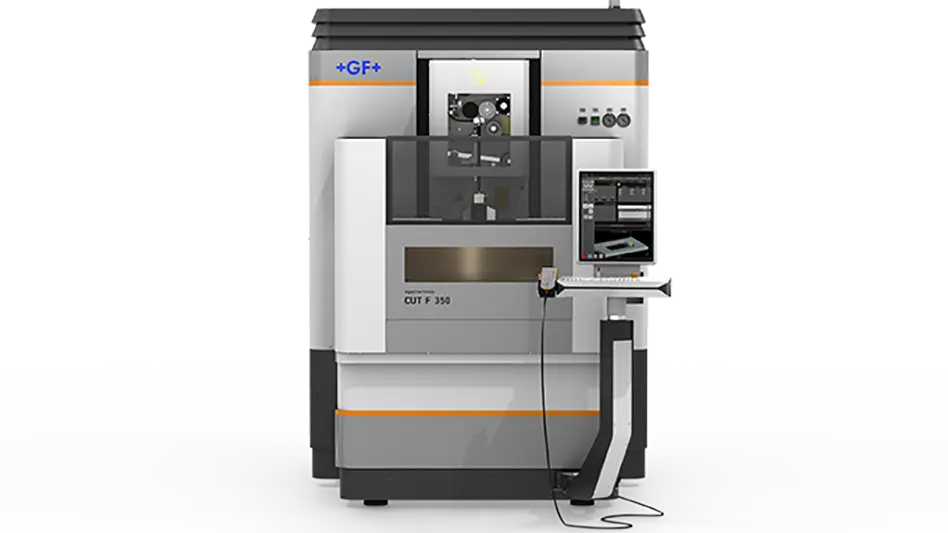

New GF CUT F 350 | Wire EDM
Have one to sell?
ConditionNew
New
CUT F 350
Balanced flexibility:
CUT F offers a balanced flexibility, be it tool cutting or part production; be it precision or performance; a versatile tool thanks to its high positioning accuracy and performant generator with Spark Track options. Optimized mechanical design and high quality components offer reliable precision and performance to tackle any job at hand.
Your benefit:
• Flexibility with productivity thanks to the HMI Uniqua.
• Easy to use no matter what your previous background is.
• ISPS + iWire reduce the machining cost, increase machine autonomy, give more sustainability.
• Stable high pitch accuracy through thermostabilized technology.
• Achieve reliable results with more than 600 technology data base.
Travel X, Y, Z
350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Min. surface roughness RA
Carbide: 0.14 μm / Steel: 0.18 μm
Carbide: 5.50 μin / Steel: 7.09 μin
Dimensions of complete equipment *
1850 x 3050 x 2450 mm
72.83 x 120.07 x 96.45 in
Max. taper angle / height
± 30/50° mm
± 30/1.97° in
Max. workpiece dimensions
820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight
400 kg
882 lbs
Workpiece
Travel U, V
± 45 mm
± 1.77 in
Wire diameters
0.10-0.30 mm
0.004-0.012 in
Max. wire spool weight
8 (JIS P5), 25 (DIN 160) kg
* Width x depth x height
