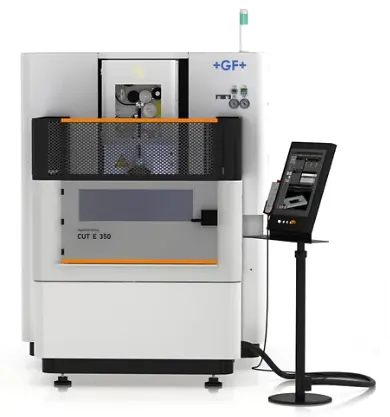

GF CUT E 350 Jobshop
ConditionNew
New
The CUT E 350 puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface UNIQUA and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.
+ Power your performance
Your business performance is powered by machine performance, and our Intelligent Power Generator (IPG) boasts wide range expert technologies help you achieve the surface quality & precision your discerning customers demand.
+ Accelerate your productivity
Time saved is money in your pocket. Onboard speed technology package puts you on the fast track to provide excellent performances at an affordable price.
+ Benefit from our expertise
You benefit from GF Machining Solutions’ legacy of more than 60 years of EDM expertise. ICP detects even the slightest abnormal forces and halts X, Y or Z axis movement in time to avoid damages and related costs.
+ Experience innovation
You’re just one click away from machining perfect punches, dies, molds and parts, thanks to our intelligent, intuitive UNIQUA interface. Included are powerful tools for fast, safe machining preparation to make your machine programmer’s life easier.
Travel X, Y, Z
350 x 250 x 250 mm
13.78 x 9.84 x 9.84 in
Min. surface roughness RA
0.14 μm
6 μin
Dimensions of complete equipment *
1850 x 3050 x 2220 mm
72.83 x 120.07 x 87.40 in
Max. taper angle / height
± 30/50° mm
± 30/1.97° in
Max. workpiece dimensions
820 x 680 x 250 mm
32.28 x 26.77 x 9.84 in
Max. workpiece weight
400 kg
882 lbs
Workpiece
Travel U, V
± 45 mm
± 1.77 in
Wire diameters
0.15-0.30 (0.10 optional) mm
0.006-0.012 (0.04 optional) in
Max. wire spool weight
8 (25 optional) kg
* Width x depth x height
