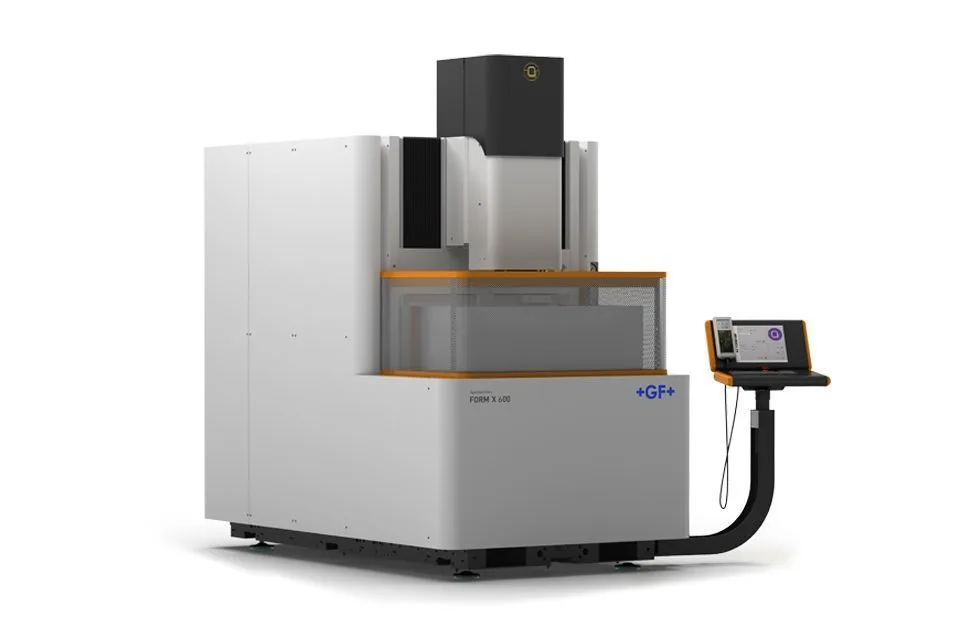

New GF FORM X 600 | EDM Sinkers

Description

GF Machining Solutions is pleased to propose the AgieCharmilles FORM X 600 die-sinking electrical discharge machining solution equipped with a personal computar (PC) numerical control, utilizing micro-processors that allow the automatic machining of ribs and cavities, from roughing to finishing. Thanks to the AC FORM human -machine interface (HMI) the automatic step-by-step execution of elementary machining operations, machining cycles, part programs and any other necessary operations between programs (e.g., as tool changing, filling up the work tank) are managed. The plus of this machine's generator is that the generator has been upgraded in order to allow you to achieve perfect and accurate part during micromachining.

- Space saving compact design.
- The Z axis is able to reach a maximum speed of 15 m/min (49.2 ft/min), with an acceleration speed of 10 m/s2 (32.8 ft/s2)
- Travers for X,Y and Z travel of 6 m/min (19.7 ft/min) for fast tool changing and measuring time.
- X, Y and Z are cooled with thermo-stabilized dielectric allowing a constant temperature environment
- Z axis assembly benefits from a special thermo-stabilized network to avoid thermal expansion according to the environment temperature.
- Collision protection on all axes
- The symmetrical design concept of every single component ensures a predictive behavior of the machine geometry. - Additionally, with its fully automatic thermos-compensating system, each machine axis is individually optimized to guarantee the highest accuracy in the workshop environment.
- GF Machining Solutions' Intelligent Speed Generator (ISPG) for best performances and results:
- 80 ampere (standard)
- 140 ampere (option)
- iQ module for graphite: reduction of wear to a minimum with almost all types of graphite - iQ module for copper: reduction of wear to a minimum with copper electrodes

The machine can be equipped (variant) with an integrated C axis.
