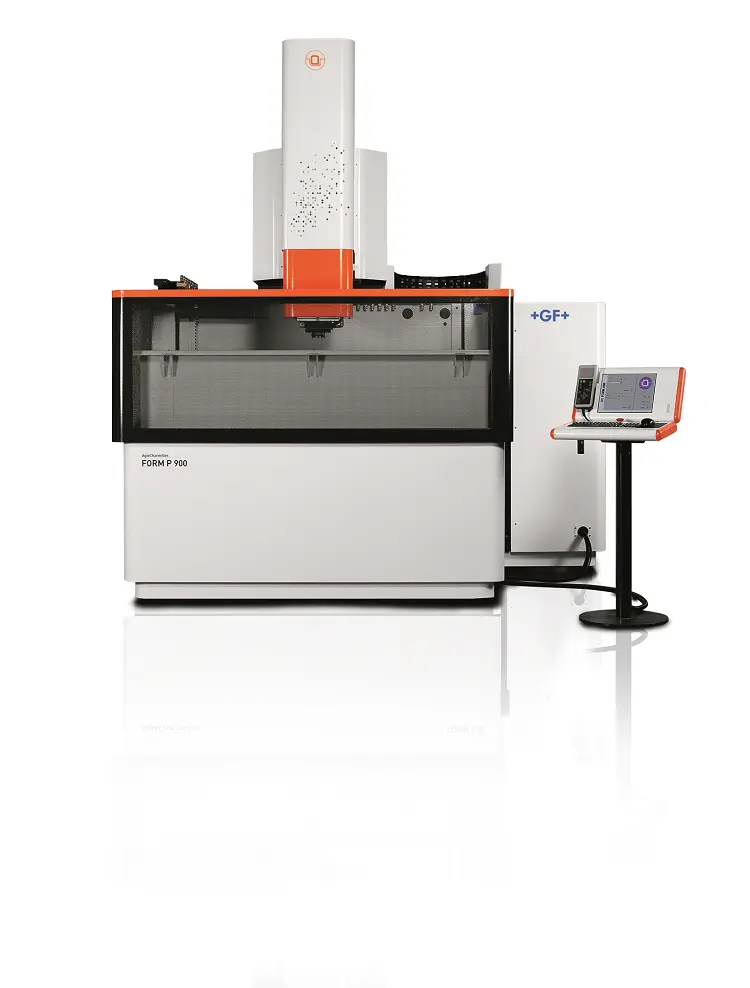

New GF FORM P 900 | EDM Sinkers
Have one to sell?
ConditionNew
New
GF Machining Solutions is pleased to propose the AgieCharmilles FORM P 900 die-sinking electrical discharge machining (EDM) solution with personal computer (PC) numerical control, utilizing micro-processors that allow the automatic machining of ribs and cavities, from roughing to finishing. Thanks to the AC FORM human-machine interface (HMI), the automatic step-by-step execution of elementary machining operations, machining cycles, part programs and any other necessary operations between programs (e.g., as tool changing, filling up the work tank) are managed.
- Space saving compact design
- High speed Z pulse 7.5 m/ min (24.6 ft/min) for no flushing applications with an acceleration speed of 5
m/sec2 (16.4 ft/sec2)
- Travers for X, Y, Z travel of 6 m/min (19.7 ft/min) for fast tool changing and measuring time - 3 sided drop tank design for easy access
- 50 n / 0.05 μm/ 0.000002" in resolution glass scales on all axes
- Collision protection on all axes
- AC FORM HMI - Windows PC based
Machine dimensions *
2970 x 3100 x 3320 mm
116.93 x 122.05 x 130.71 in
Total weight (without dielectric)
7000 kg
15432 lbs
Travel X, Y, Z *
900 x 700 x 500 mm
35.43 x 27.56 x 19.68 in
Min./Max. distance between table and chuck ***
322-822 mm
12.68-32.36 in
Best surface finish RA
0.1 μm
Capacity
2500 l
662.5 gal
Workpiece and electrode
Max. workpiece dimensions *
1670 x 1120 x 560 mm
65.75 x 40.09 x 22.05 in
Max. workpiece weight
3000 kg
6613.86 lbs
Max. electrode weight
50 kg
110.23 lbs
Bath level (programmable)
100 - 500 mm
3.94 - 21.65 in
* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro
