New GF FORM P 600 | EDM Sinkers
Have one to sell?
ConditionNew
New

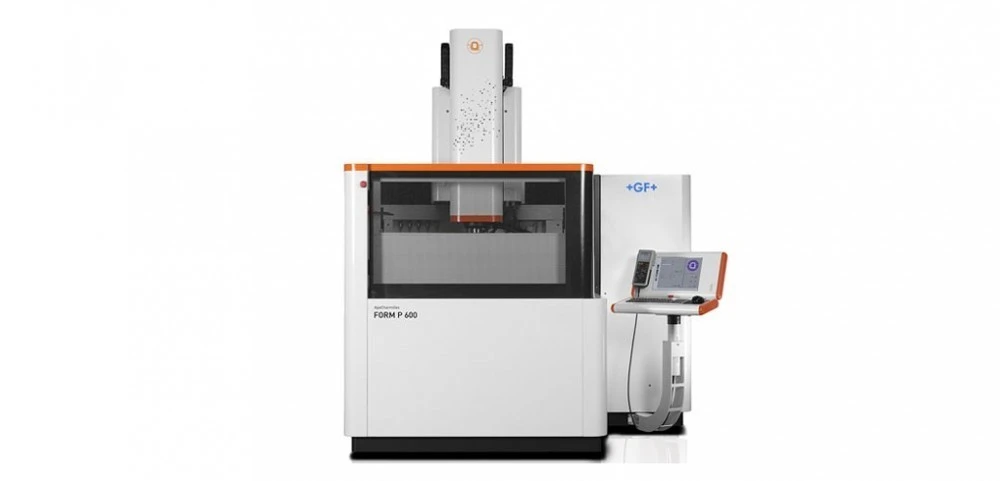

GF Machining Solutions is pleased to propose the AgieCharmilles FORM P 600 die-sinking electrical discharge machining (EDM) solution with personal computer (PC) numerical control, utilizing micro-processors that allow the automatic machining of ribs and cavities, from roughing to finishing. Thanks to the AC FORM human-machine interface (HMI), the automatic step-by-step execution of elementary machining operations, machining cycles, part programs and any other necessary operations between programs (e.g., as tool changing, filling up the work tank) are managed.
- Space saving compact design
- High speed Z pulse 10 m/ min (32.8 ft/min) for no flushing applications with an acceleration speed of 5
m/sec2 (16.4 ft/sec2)
- Travers for X, Y, Z travel of 6 m/min (19.6 ft/min) for fast tool changing and measuring time - 3 sided drop tank design for easy access
- 50 n / 0.05 μm/ 0.000002" in resolution glass scales on all axes
- Collision protection on all axes
- AC FORM HMI - Windows PC based
Machine dimensions *
2265 x 2110 x 2780 mm
89.17 x 83.07 x 109.45 in
Total weight (without dielectric)
4500 kg
9920 lbs
Travel X, Y, Z *
600 x 400 x 450 mm
23.62 x 15.75 x 17.72 in
Min./Max. distance between table and chuck ***
150-600 mm
5.91-23.62 in
Best surface finish RA
0.08 μm
Capacity
700 l
184.8 gal
Workpiece and electrode
Max. workpiece dimensions *
1040 x 730 x 410 mm
40.94 x 28.74 x 16.14 in
Max. workpiece weight
1600 kg
3527.40 lbs
Max. electrode weight
50 kg
110.23 lbs
Bath level (programmable)
100 - 400 mm
3.94 - 15.75 in
* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro
