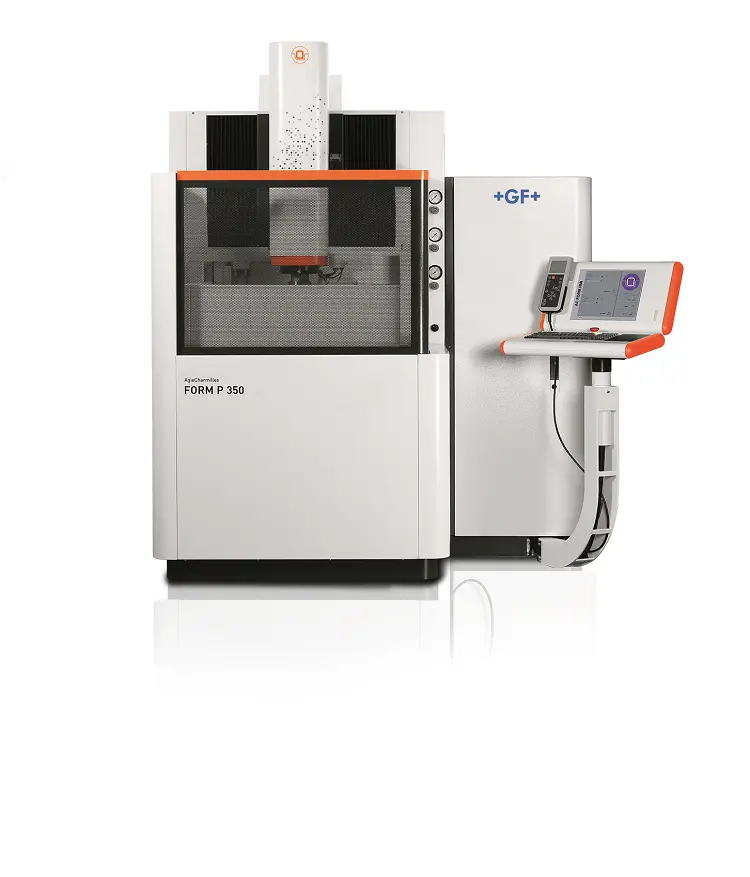

New GF FORM P 350 | EDM Sinkers
Have one to sell?
ConditionNew
New
GF Machining Solutions is pleased to propose the AgieCharmilles FORM P 350 die-sinking electrical discharge machining (EDM) solution with personal computer (PC) numerical control, utilizing micro-processors that allow the automatic machining of ribs and cavities, from roughing to finishing. Thanks to the AC FORM human-machine interface (HMI), the automatic step-by-step execution of elementary machining operations, machining cycles, part programs and any other necessary operations between programs (e.g., as tool changing, filling up the work tank) are managed.
- Space saving compact design
- High speed Z pulse 15 m/ min (49.2 ft/min) for no flushing applications with an acceleration speed of 5
m/sec2 (16.40 ft/sec2)
- Travers for X, Y, Z travel of 6 m/min (19.6 ft/min) for fast tool changing and measuring time - 3 sided drop tank design for easy access
- 50 n / 0.05 μm/ 0.000002" in resolution glass scales on all axes
- Collision protection on all axes
- AC FORM HMI - Windows PC based
Machine dimensions *
1900 x 1690 x 2398 mm
74.80 x 66.53 x 94.4 in
Total weight (without dielectric)
2800 kg
6173 lbs
Travel X, Y, Z *
350 x 250 x 300 mm
13.78 x 9.84 x 11.81 in
Min./Max. distance between table and chuck ***
150-450 mm
5.91-17.72 in
Best surface finish RA
0.08 μm
Capacity
410 l
108.65 gal
Workpiece and electrode
Max. workpiece dimensions *
700 x 460 x 285 mm
27.56 x 18.11 x 11.22 in
Max. workpiece weight
500 kg
1102.31 lbs
Max. electrode weight
50 kg
110.23 lbs
Bath level (programmable)
100 - 305 mm
3.94 - 12.01 in
* Width x depth x height ** Width x depth *** With C-Axis Eco + System 3R Macro
