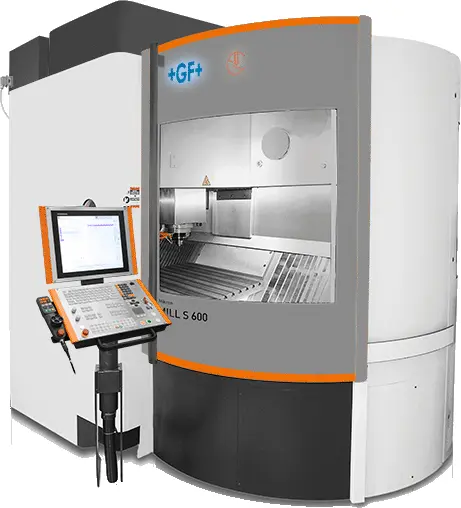

New GF Mikron MILL S 600 | Vertical Machining Centers
Have one to sell?
ConditionNew
New
The machines from the Mikron MILL S series are real high speed machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.
Travel X,Y,Z
600 x 600 x 500 mm
23.62 x 23.62 x 19.68 in
Rapid traverse X,Y,Z
61 m/min
2,401 in/min
Working spindle (40% ED, S6)
42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm
Work table
900 x 600 mm
35.43 x 23.62 in
Pallet/clamping surface
800 x 600 mm
31.5 x 23.62 in
Max. load (incl. pallet)
500 kg
1102 lbs
Tool magazine
18/36/68/168 (HSK-E40)
15/30/60/120/170/220 (HSK-E50)
Machine weight
9,900 kg
21,825 lbs
Control unit
TNC 640 (Heidenhain)
